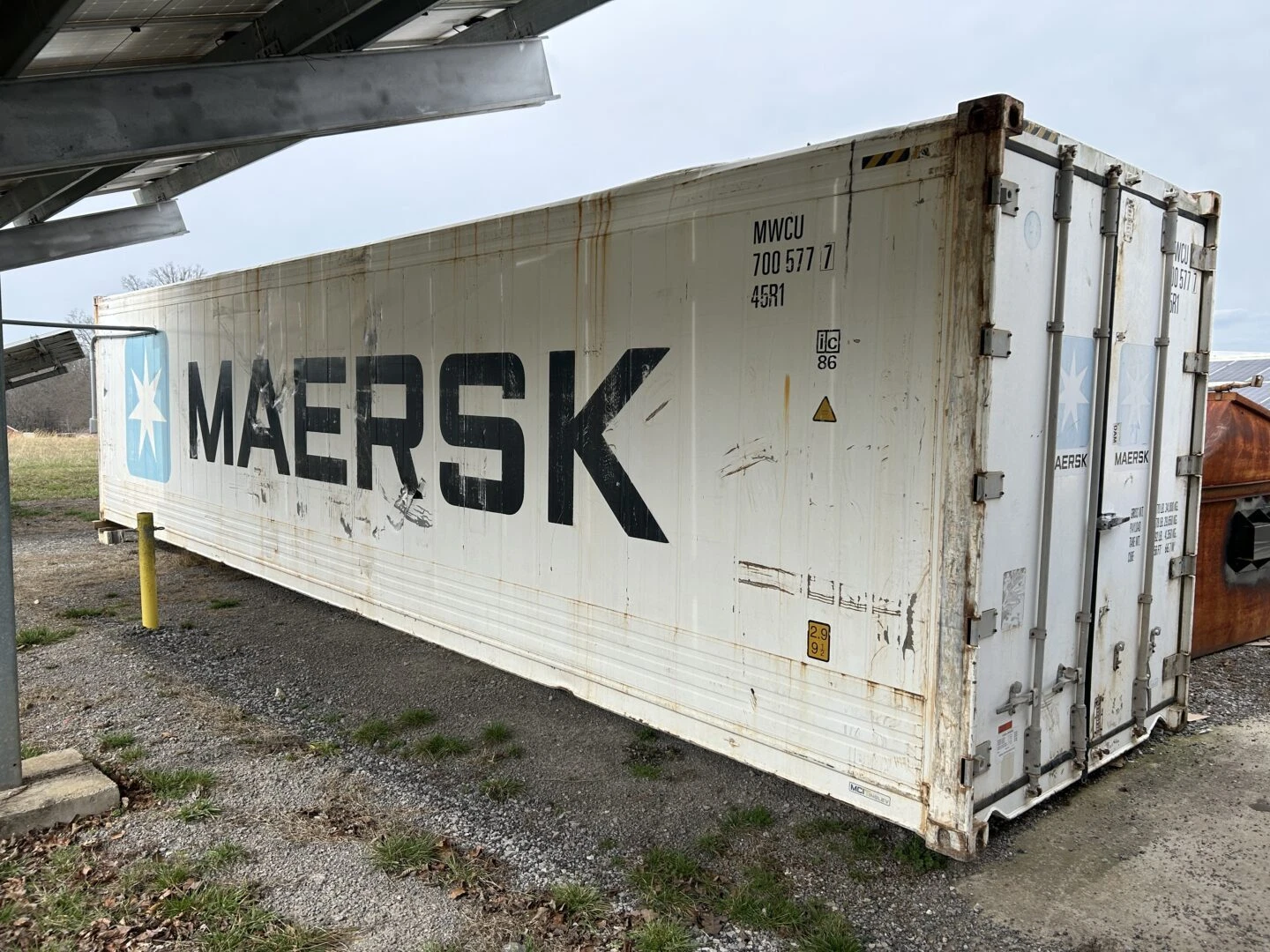

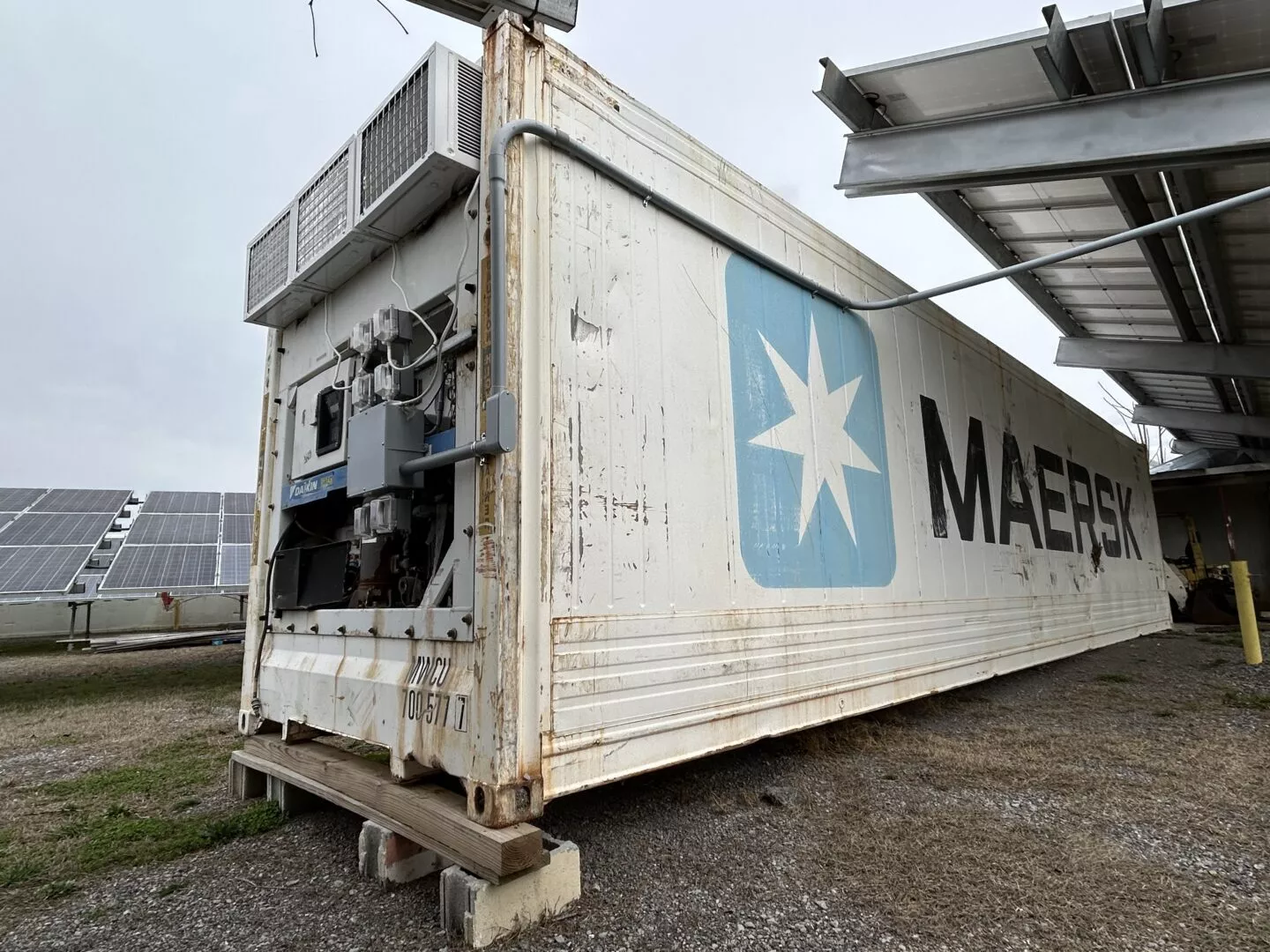

Maersk 40ft Refrigerated Container – Daikin Unit – Model RAHC-031

A Maersk 40ft refrigerated container – Daikin unit – model RAHC-031 provides precision temperature-controlled storage and transport for perishable goods, pharmaceuticals, and frozen products, combining Maersk’s industry-leading container engineering with Daikin’s advanced refrigeration technology. For example, this unit is perfect for businesses requiring reliable cold chain logistics, with the ability to maintain temperatures from -30°C to +30°C . However, unlike standard dry containers, this reefer unit features insulated walls, a Daikin refrigeration system, and advanced airflow management. As a result, you receive a CSC-certified, high cube container that keeps temperature-sensitive cargo in optimal condition throughout transit. Learn about reefer container specifications from official Maersk guidelines.

Why Choose a Maersk Daikin Reefer Container?

Standard refrigerated containers vary significantly in build quality and performance. In contrast, this Maersk 40ft refrigerated container – Daikin unit – model RAHC-031 represents a premium combination: Maersk container construction (typically manufactured by Maersk Container Industry AS) paired with Daikin’s reliable cooling technology . Consequently, the 40ft high cube dimensions provide 67–76 cubic metres of internal capacity with an internal height of 2,545mm (8ft 4in)  . Moreover, Daikin units are known for energy efficiency and precise temperature control, operating on 360–480V, 50–60Hz electrical supply . Thus, you gain reliable cold storage with industry-leading build quality.

Key Features of This Maersk 40ft Reefer Container

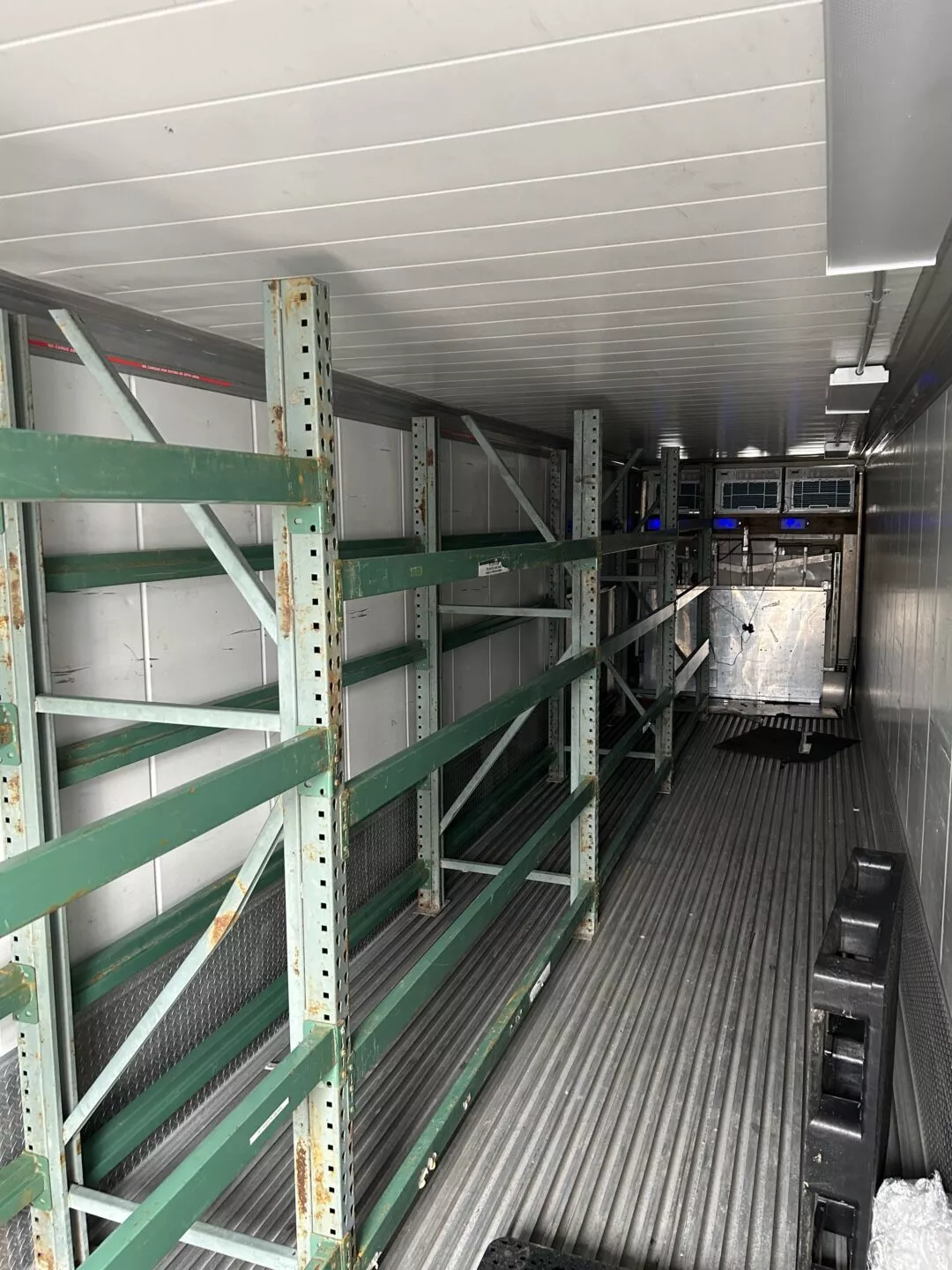

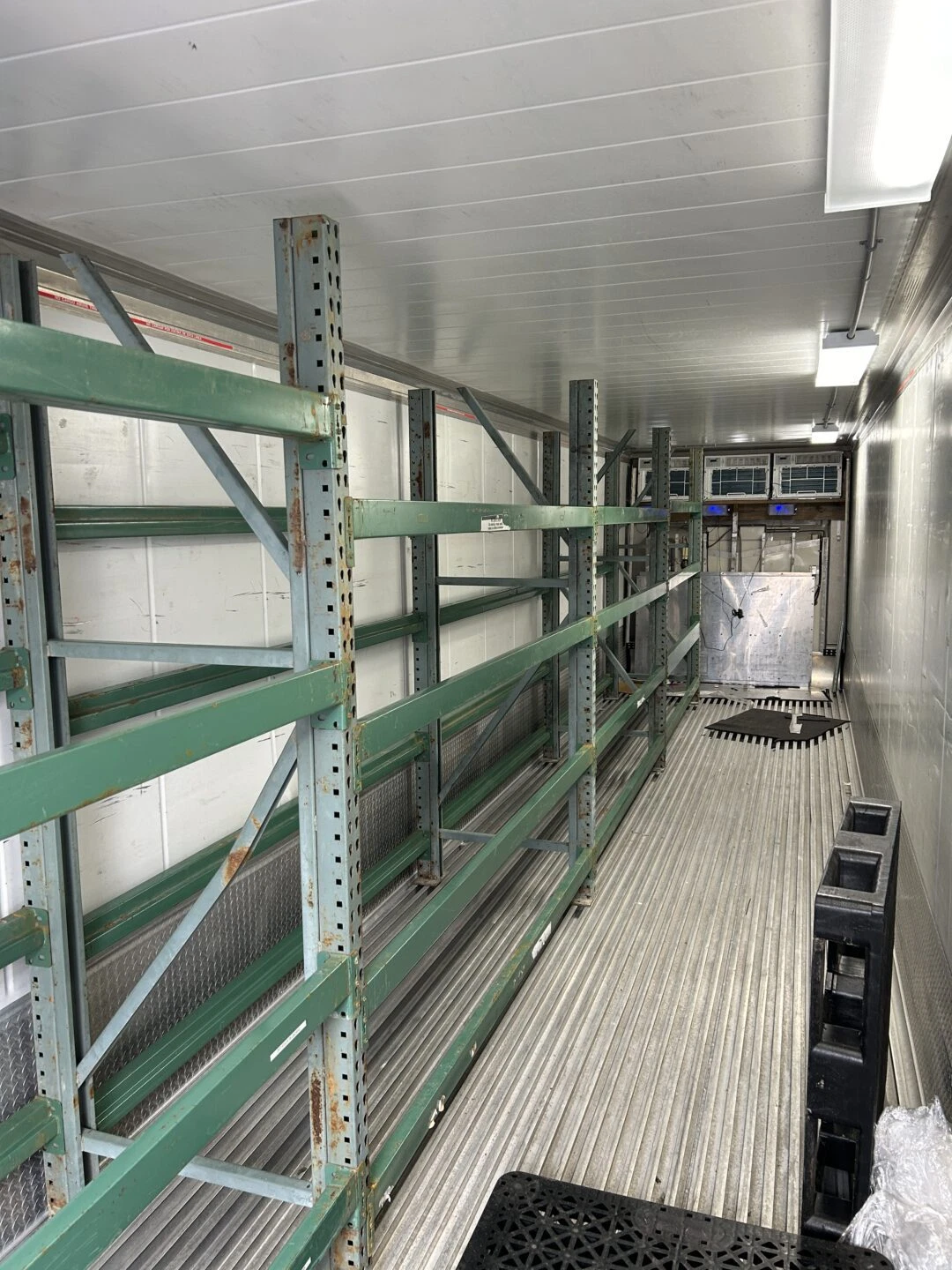

The Daikin RAHC-031 refrigeration unit and high cube dimensions are the defining features of this unit. For instance, the temperature range spans from -30°C to +30°C , accommodating frozen goods (ice cream at -25°C), chilled produce (0°C to 13°C), and pharmaceuticals (2°C to 8°C)  . Similarly, the bottom-air delivery system with T-bar flooring ensures even temperature distribution throughout the cargo space  . Furthermore, the CSC plate (valid for intermodal shipping) allows legal transport on ships, trains, and trucks . Finally, the unit includes real-time monitoring capabilities for complete cargo visibility .

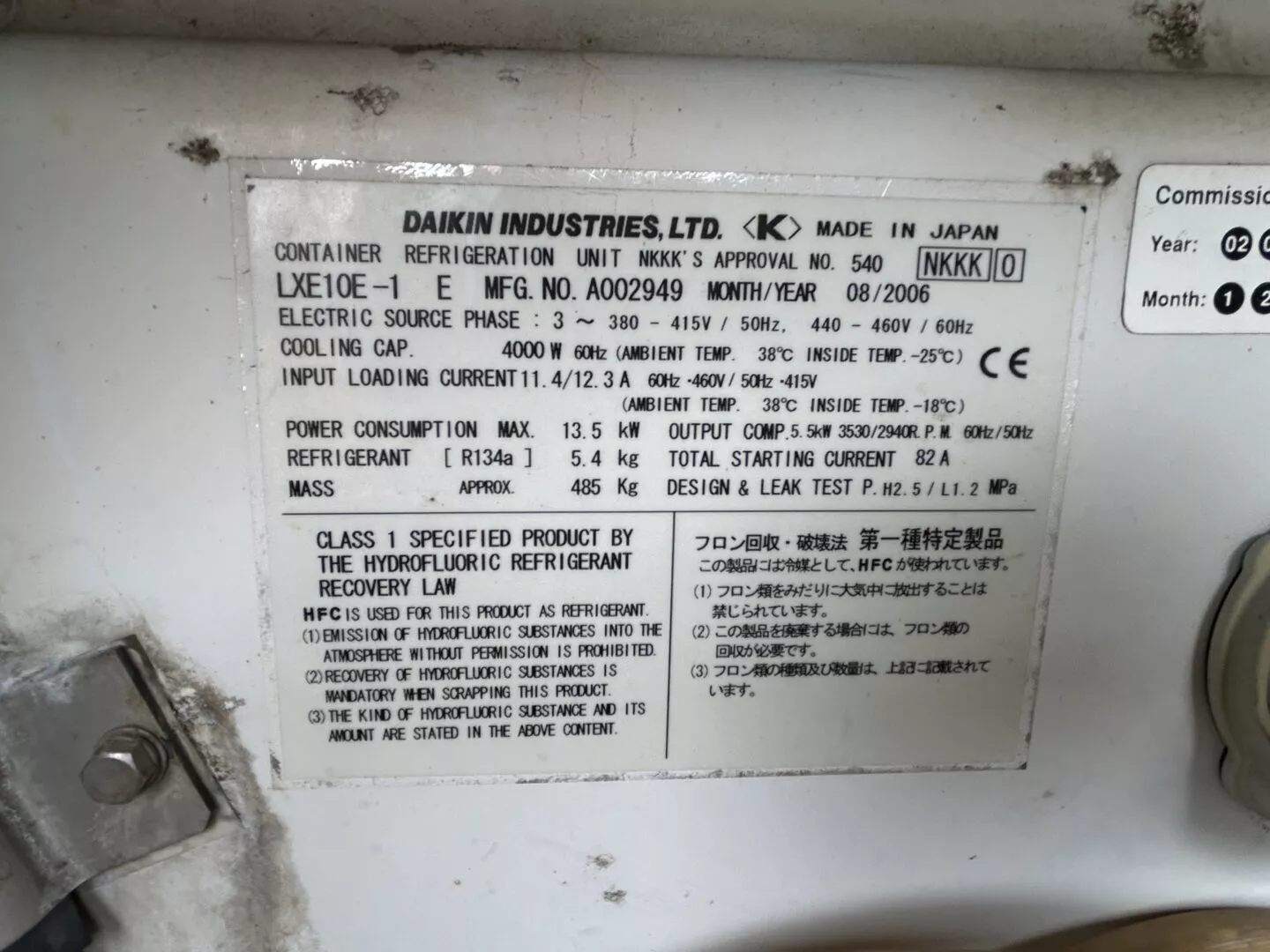

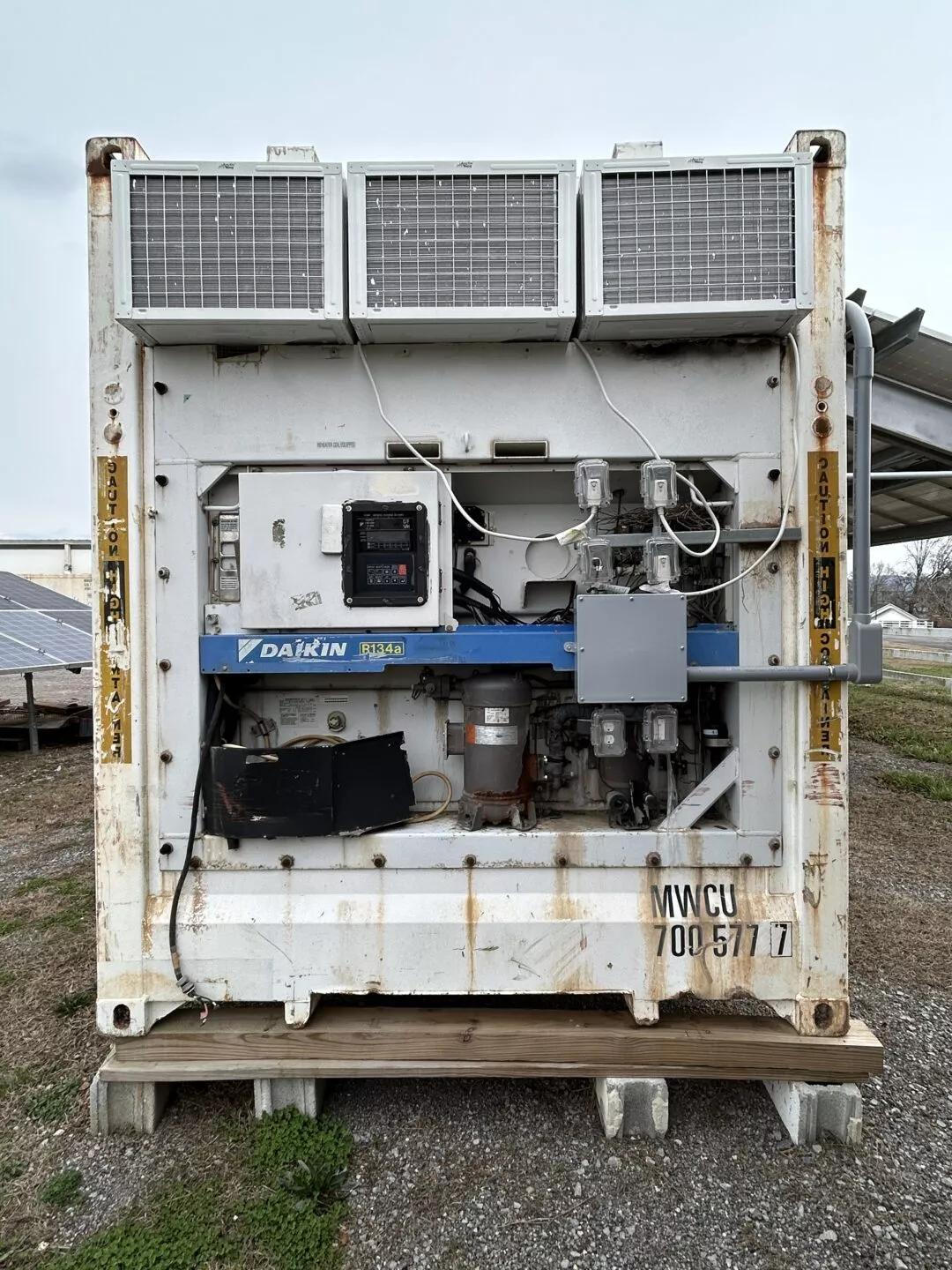

Daikin RAHC-031 Refrigeration Unit Specifications

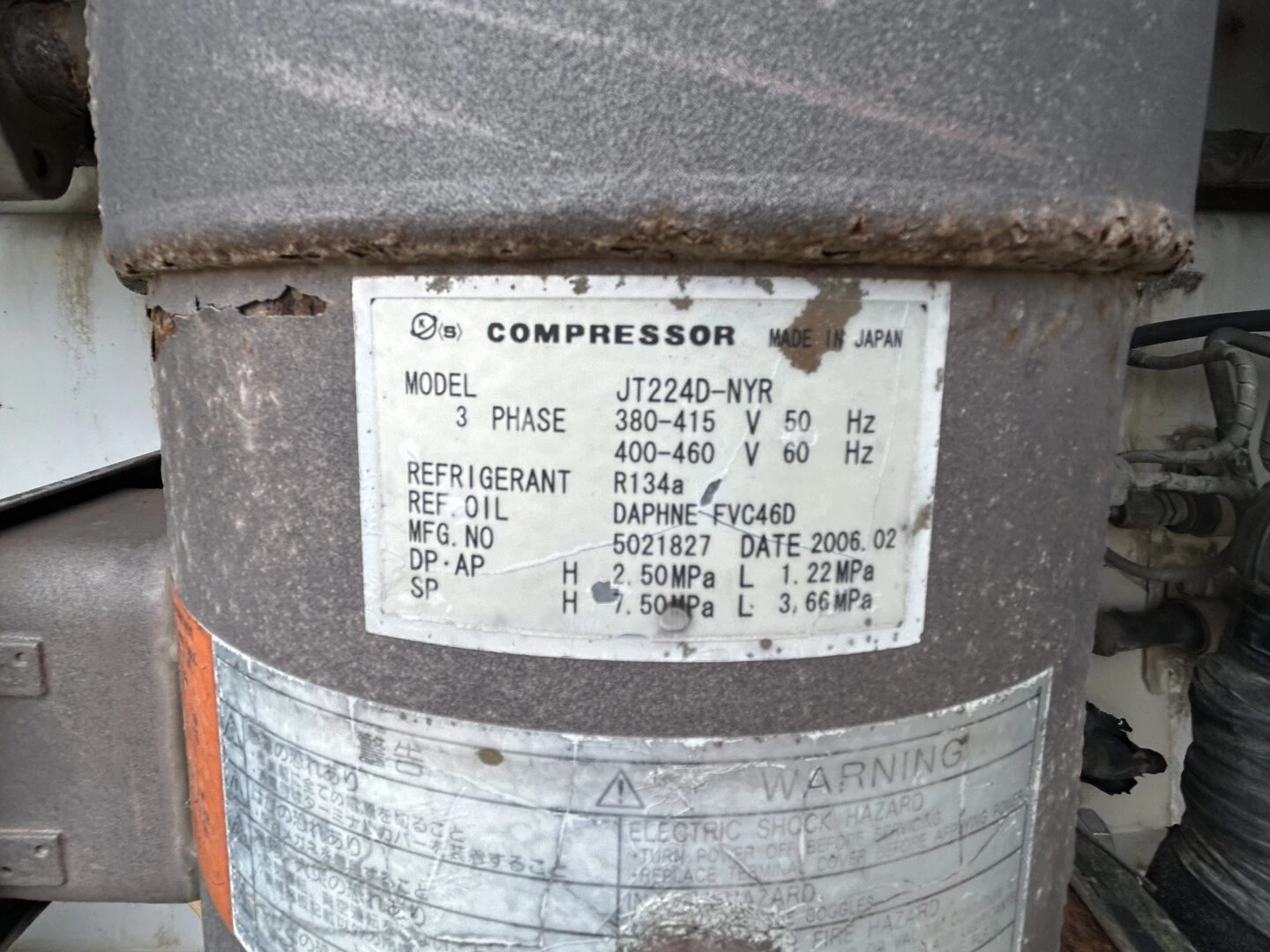

The Daikin RAHC-031 is designed for reliable performance in demanding conditions. For example, the unit operates within a temperature range of -30°C to +30°C, suitable for frozen, chilled, and ambient cargo . Likewise, the integrated refrigeration system includes a compressor, condenser, evaporator, and refrigerant in a continuous cooling loop  . If you require ultra-low temperatures for specific products, consider Maersk’s Super Freezer units capable of reaching -60°C .

CSC Certification and High Cube Dimensions

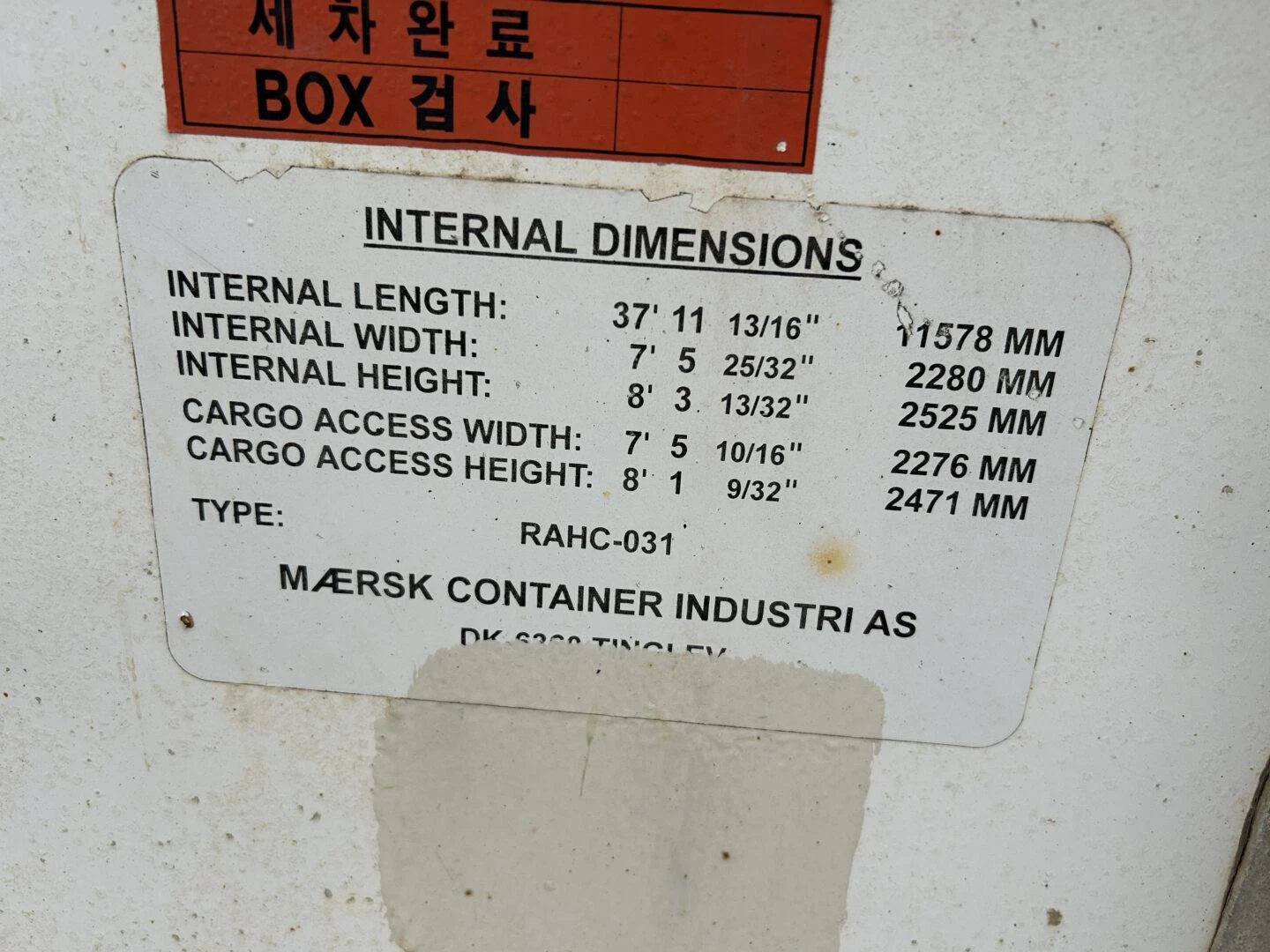

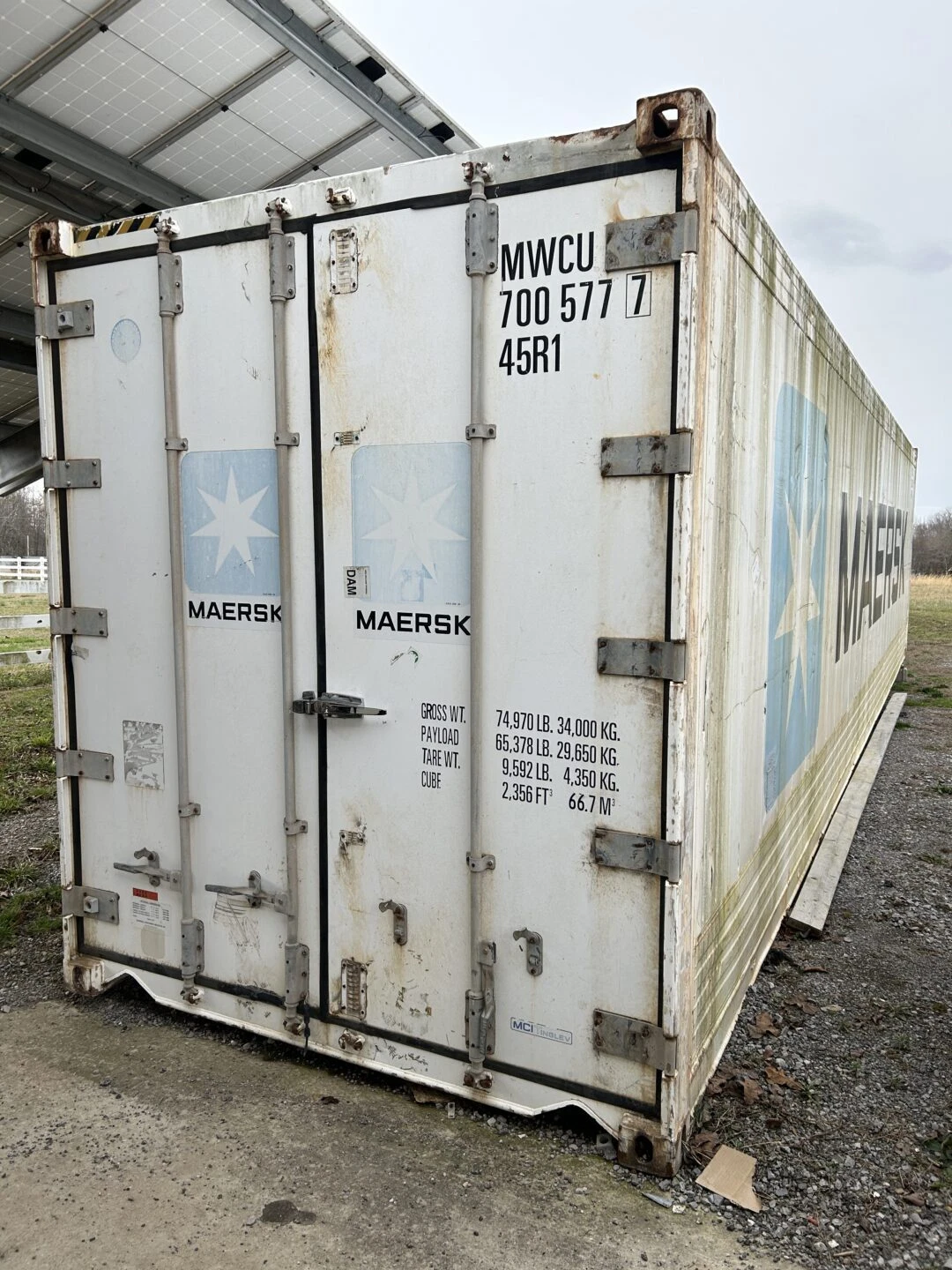

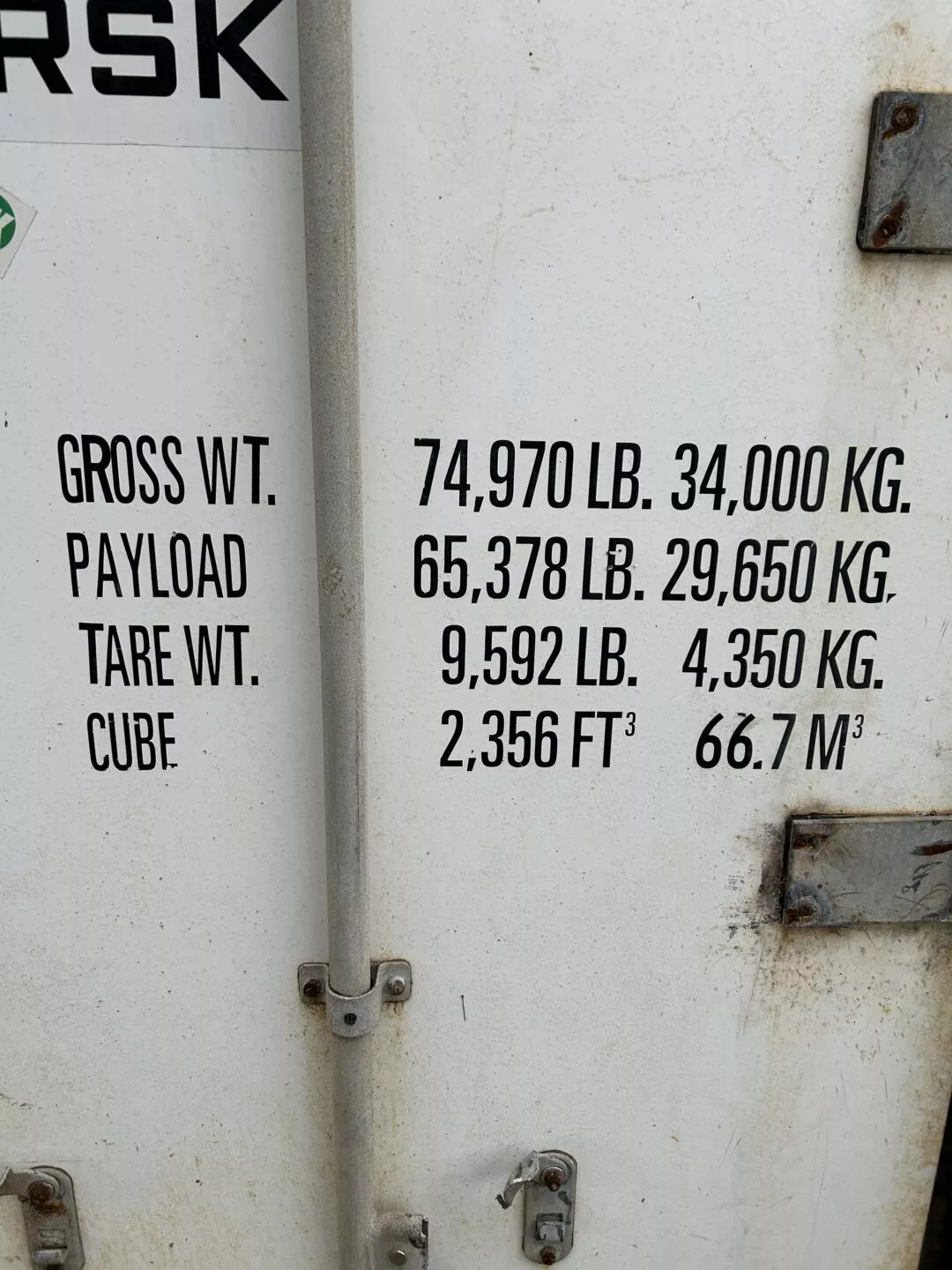

As a CSC-certified unit, this container is ready for international shipping. For example, typical 40ft high cube reefer specifications include internal length of 11,585–11,588mm, internal width of 2,290mm, and internal height of 2,545mm  . Likewise, the tare weight is approximately 4,470–4,490kg, with a max payload of 30,530kg and max gross weight of 35,000kg  . If you are shipping temperature-sensitive cargo overseas, the CSC plate is essential for customs clearance and carrier acceptance.

Quality – Maersk Container Industry AS Construction

This container is built by Maersk Container Industry AS (MCI), a leading manufacturer of high-quality refrigerated containers. For example, the Mark Q series features durable cladding: 0.8/1.2mm MGSS exterior walls, 0.7mm HGSS interior lining, and 63.5mm high aluminium T-floor for optimal airflow  . Likewise, frame construction uses 6.0mm Corten steel corner posts and 4.0mm Corten steel rails for structural integrity  . If you need a container that withstands harsh shipping environments, MCI’s Corten steel construction provides exceptional durability.

What’s Included

First, every unit includes the 40ft high cube Corten steel container with Maersk construction. Second, the Daikin RAHC-031 refrigeration unit is fitted and tested. Third, CSC safety plate is affixed and valid. Finally, forklift pockets and crane lugs are included for repositioning.

For instance, add a data logger for temperature monitoring during transit. Likewise, a full repainting service is available in any RAL colour. Contact our container team for bulk orders.
