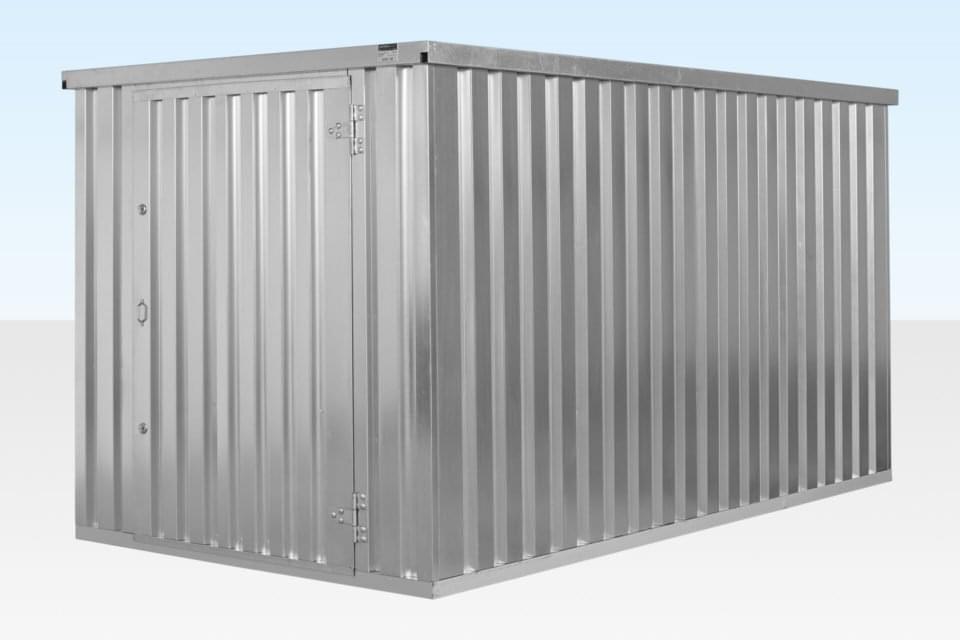

4m Flat Pack Container Store – Galvanised, Double Locking System

This 4m flat pack container store – galvanised, double locking system solves a common site problem: getting secure storage into areas that standard containers cannot reach . For example, you can install this unit through narrow passageways, down alleyways, or into courtyards where a 20ft container would never fit. Therefore, this flat pack store provides robust, weatherproof security for previously inaccessible locations.

Why Choose a Flat Pack Container Store?

Standard steel containers require cranes, flatbed trucks, and significant clearance for delivery. In contrast, this flat pack store arrives as compact, man-portable panels . Consequently, you can carry each component (heavy parts weigh approximately 74kg) by hand through restricted routes. Moreover, you assemble the entire unit using just a socket set – no specialist tools or heavy lifting gear required . Thus, you gain professional-grade security without delivery constraints.

Galvanised Steel Construction – Built to Last

The galvanised steel construction makes this store exceptionally durable for outdoor use. First, 0.60mm box profile galvanised steel panels resist corrosion and impact damage . Second, strengthened framed edges on each panel add structural rigidity. Third, the integrated roof gutters disperse rainwater to all four corners . Finally, the galvanised chassis provides a solid foundation. Therefore, this unit withstands harsh site conditions for years of reliable service.

Double Locking System – High Security

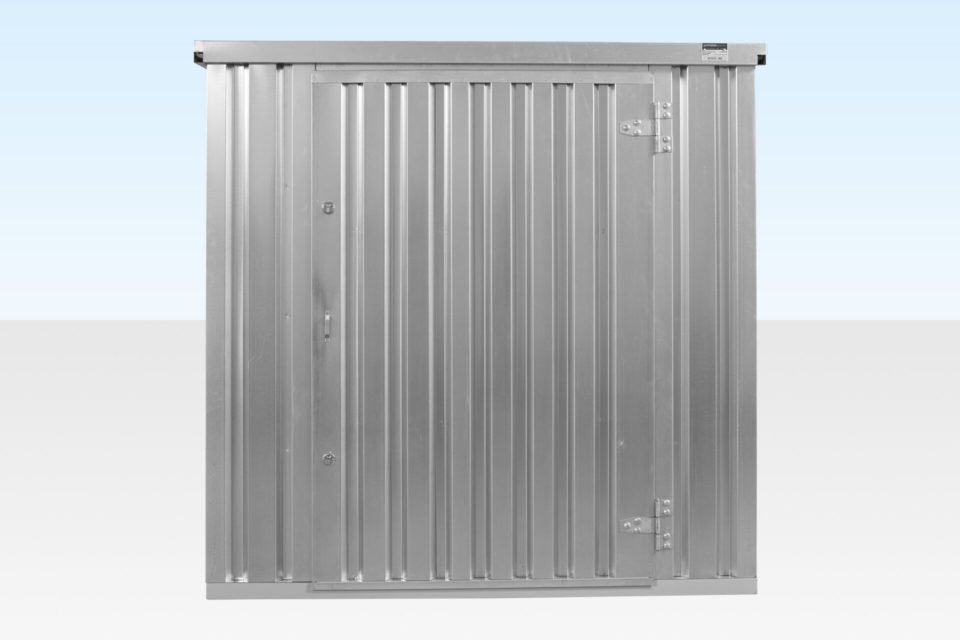

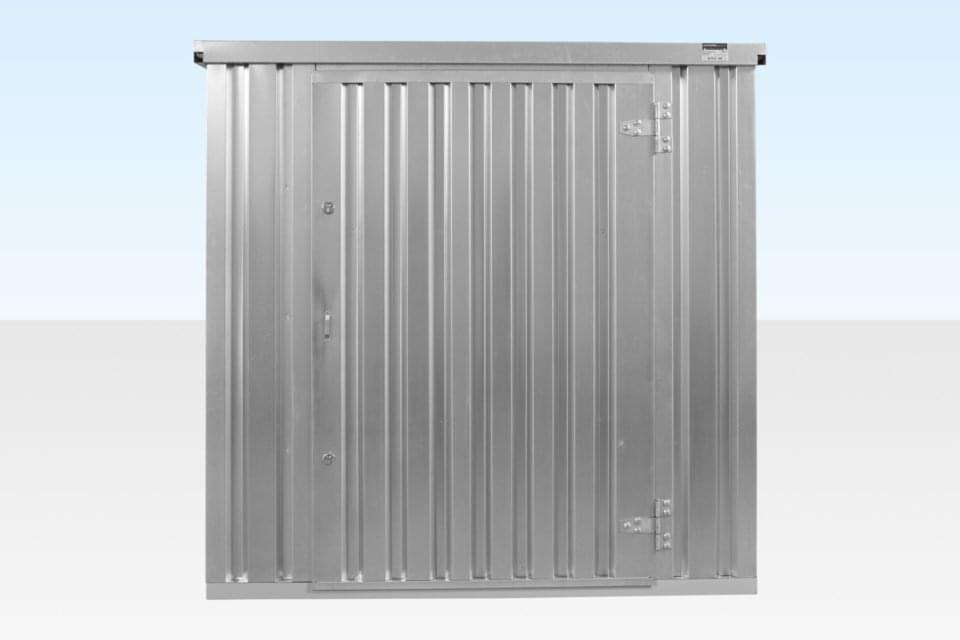

The double locking system provides robust security for valuable tools and materials. For example, two 64mm Euro deadlocks with replaceable cylinders secure the door . Likewise, heavy-duty stainless steel hinges and a central roller catch ensure smooth operation . Furthermore, roof security bolts prevent external access via the roof panels . If you store expensive equipment, this comprehensive security package deters theft.

Man-Portable – Access Anywhere

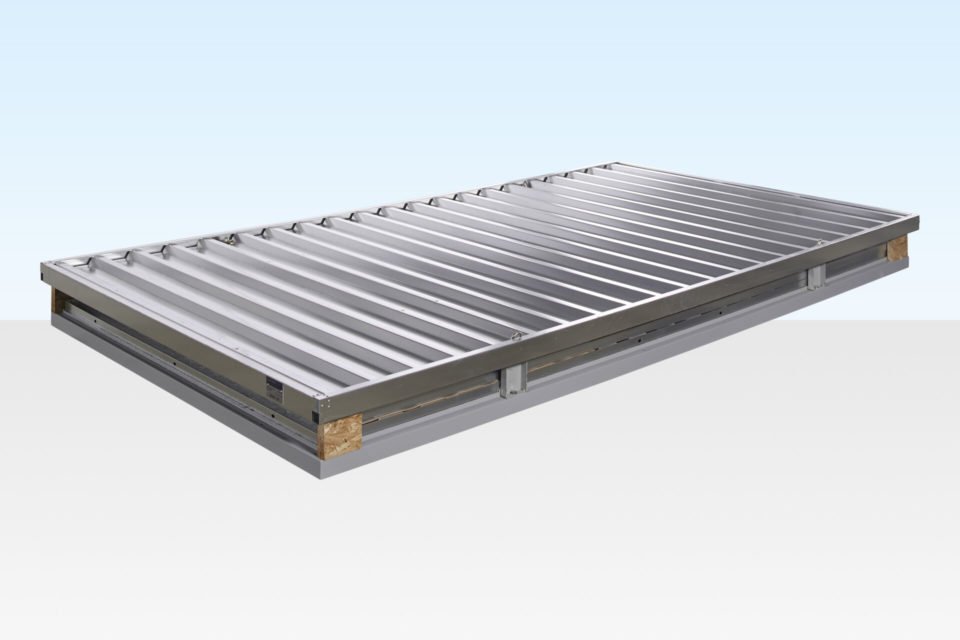

The flat pack design transforms how you can position storage on site. For example, when flat packed, the unit height measures just 300mm, allowing you to carry components through standard doorways . Likewise, you can store the flat packed kit when you have no need for the assembled unit. Furthermore, the unit knocks down quickly for relocation to another site. If your site has restricted vehicle access, this man-portable design eliminates delivery barriers.

Quick Assembly – Ready in 20 Minutes

The assembly process proves remarkably quick and straightforward. For example, two people can assemble a 4m unit in approximately 20 minutes using only a socket set . Likewise, the kit includes all necessary fixings – you need nothing else. Furthermore, the panels interlock with precision-engineered connections . If you need storage urgently, you can have this unit operational within half an hour of the kit arriving on site.

4m Dimensions – Generous Storage Space

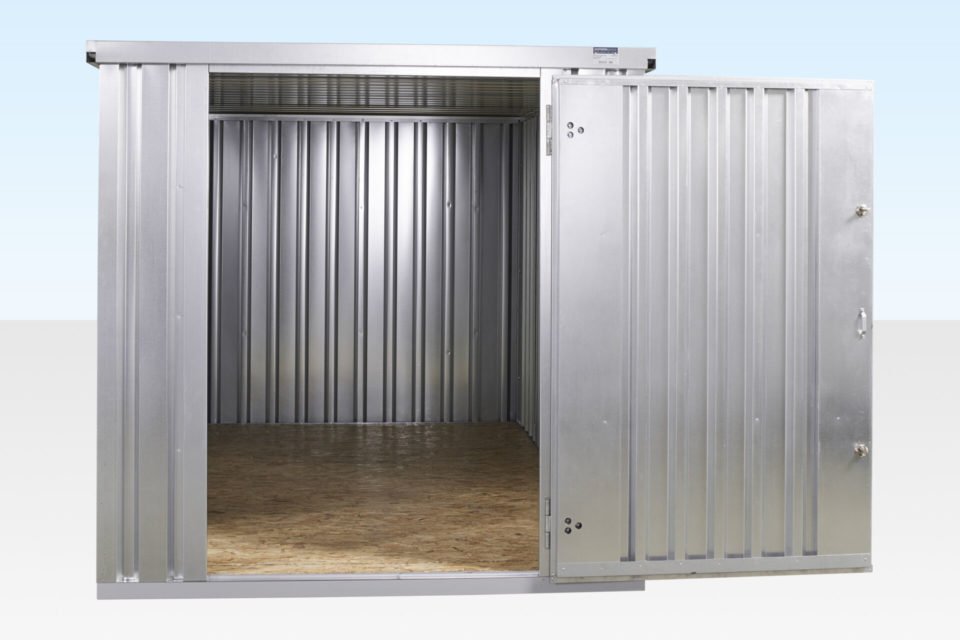

The 4m length provides substantial storage capacity in a manageable footprint. For example, the external dimensions measure approximately 4,064mm long x 2,149mm wide x 2,093mm high . Likewise, the internal height of approximately 1,970mm allows standing access . Furthermore, the 1,250mm door width provides pallet-wide access . If you store tools, materials, or equipment, this 4m store offers excellent capacity.

Level Base and Floor Loading

Proper installation requires a level, firm base for stability. For example, the unit comes with a pre-fabricated 18mm grade 3 Norbord Canadian Sterling Board floor fixed to a galvanised steel ring frame . Likewise, this floor construction provides a solid working surface. Furthermore, optional adjustable levelling feet and forklift pockets are available for uneven ground . If you prepare a compacted hardcore or concrete base, the unit sits securely.

Footprint and Delivery Considerations

The 4m model offers standard external dimensions of 4,064mm (length) x 2,149mm (width) x 2,093mm (height) . Internal dimensions provide approximately 3,920mm of usable length, 1,970mm of headroom, and 1,950mm of width. Door width of 1,250mm accepts standard pallets and equipment. Total weight when assembled is approximately 454-594kg, depending on configuration .

Expandable and Customisable

The flat pack system offers flexibility for expanding storage. For example, you can link additional units side by side or end to end to create larger storage areas . Likewise, optional powder coating in green (RAL6005), blue (RAL5010), or other RAL colours is available . Furthermore, you can add forklift feet, adjustable levelling feet, or lifting eyes as extras . If your storage needs grow, you can expand your flat pack storage system incrementally.

What’s Included

First, every unit includes the galvanised steel chassis and floor panel. Second, you receive all side, end, and roof panels (0.60mm box profile galvanised steel). Third, the door panel comes with two 64mm Euro deadlocks, stainless steel hinges, and three keys. Fourth, you get a pre-fitted 18mm OSB floor (Norbord Canadian Sterling Board). Finally, the kit includes all necessary bolts, washers, pipe linchpins, and assembly instructions .

For instance, you can add forklift pockets for repositioning . Likewise, you can add adjustable levelling feet for uneven ground . Furthermore, you can request a powder-coated finish in your choice of RAL colour. Contact our team for custom configurations and bulk orders.

Pros and Cons

Pros:

• Man-portable panels (fits through narrow routes, no crane needed)

• Quick assembly (20 minutes, just a socket set)

• Galvanised steel construction (weatherproof, corrosion-resistant)

• Double locking system (2x 64mm Euro deadlocks, 3 keys)

• Heavy-duty stainless steel hinges and central roller catch

• 1,250mm door width (pallet-wide access)

• Expandable (link additional units side by side)

• Demountable for relocation or flat pack storage

Cons:

• Requires level, firm ground for stable installation

• Non-insulated (insulated version available)

• Heavier components need 2 people to carry (74kg maximum)

• OSB floor less chemical-resistant than steel chequer plate

Technical Specifications

Final Verdict

In summary, this 4m flat pack container store delivers secure, weatherproof storage for sites where standard containers cannot access. As a result, you can place a robust storage unit in courtyards, down alleyways, or through narrow gateways. Consequently, one contractor installed this unit in a restricted city-centre site and eliminated costly off-site storage. Therefore, choose this galvanised flat pack store if you need secure storage on a restricted-access site. If you require insulation for temperature-sensitive materials, consider our insulated flat pack version . If you need bunded chemical storage, add the integrated sump option . Thus, request a free quote with your site access details and delivery postcode today.
