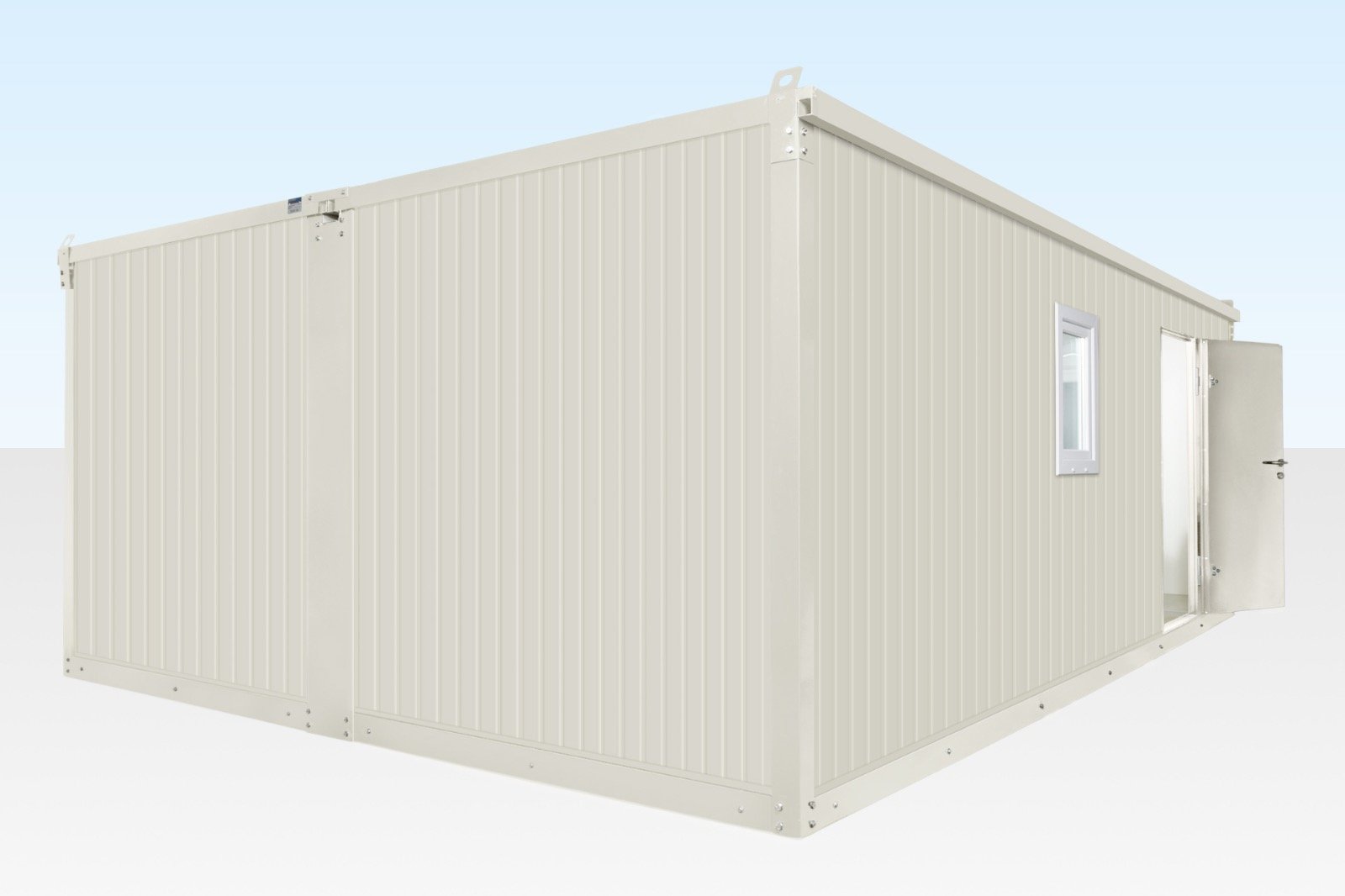

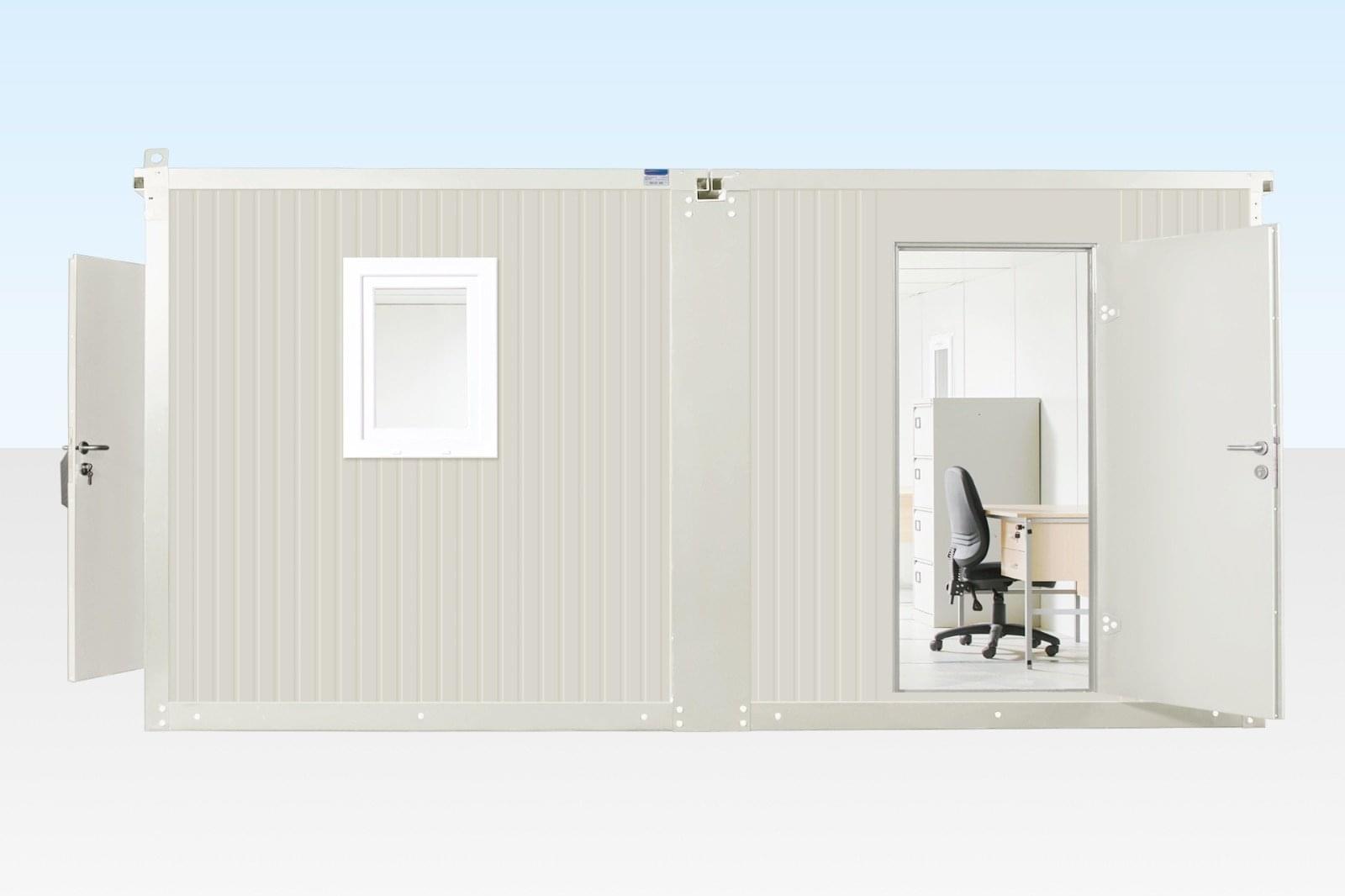

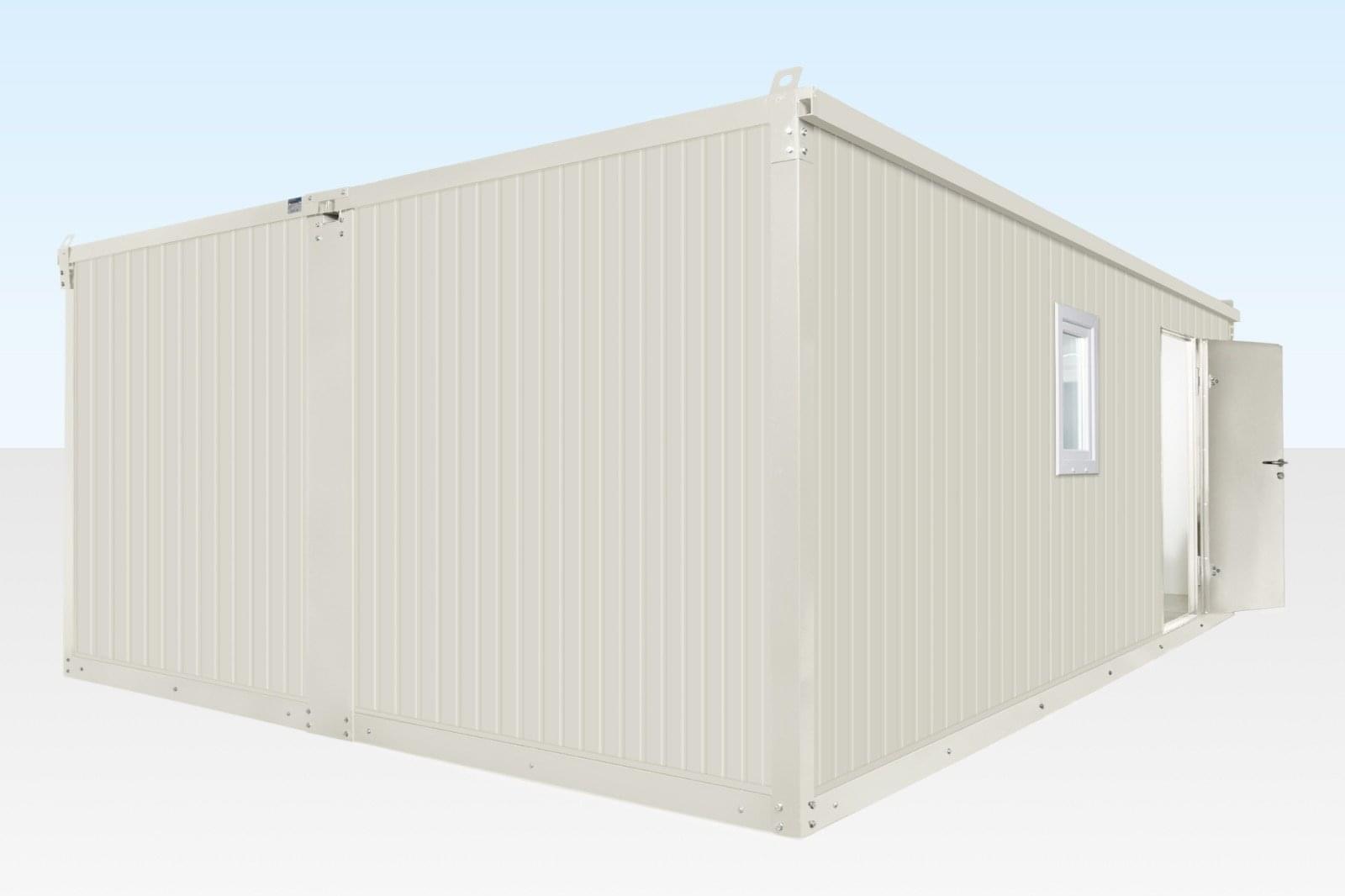

6.5m x 4.6m Side Linked Flat Pack Office – Two Cabins with Linking Kit

This 6.5m x 4.6m side linked flat pack office – two cabins with linking kit creates a spacious, open-plan workspace by joining two 6.5m flat pack cabins side by side . For example, you can accommodate large site teams, set up signing-in areas, or create health screening zones. Therefore, this side linked solution provides maximum flexibility for evolving workplace requirements.

Why Choose a Side Linked Flat Pack Office?

Standard portable cabins cannot access tight or restricted sites. In contrast, this flat pack system arrives as individual panels that you can carry by hand through narrow routes and assemble on-site . Consequently, you can install a large office building inside multi-storey car parks, through standard doorways, or in confined construction sites. Moreover, the linking kit creates one continuous open space from two separate cabins . Thus, you gain a large, professional workspace without delivery constraints.

Key Features of This Side Linked Office

The side linked configuration and man-portable design make this office building stand out . For instance, two 6.5m office cabins link together to create a total building size of 6.5m x 4.6m. Similarly, 50mm EPS insulation in walls and roof ensures year-round comfort . Furthermore, the kit includes 4 windows (with options for solid panels), 1-2 pedestrian doors, and an internal linking door. Finally, the whole building arrives flat packed with the heaviest part weighing only 74kg .

Flat Pack Delivery – Access to Any Site

The flat pack design solves site access challenges for large buildings. For example, you can deliver the unit to any property location, even where containers cannot reach . Likewise, each panel weighs no more than 74kg, allowing two people to man-handle them into position . Furthermore, the entire building packs flat to just 450mm high for storage or transport . If your site has restricted access, this flat pack design eliminates delivery constraints.

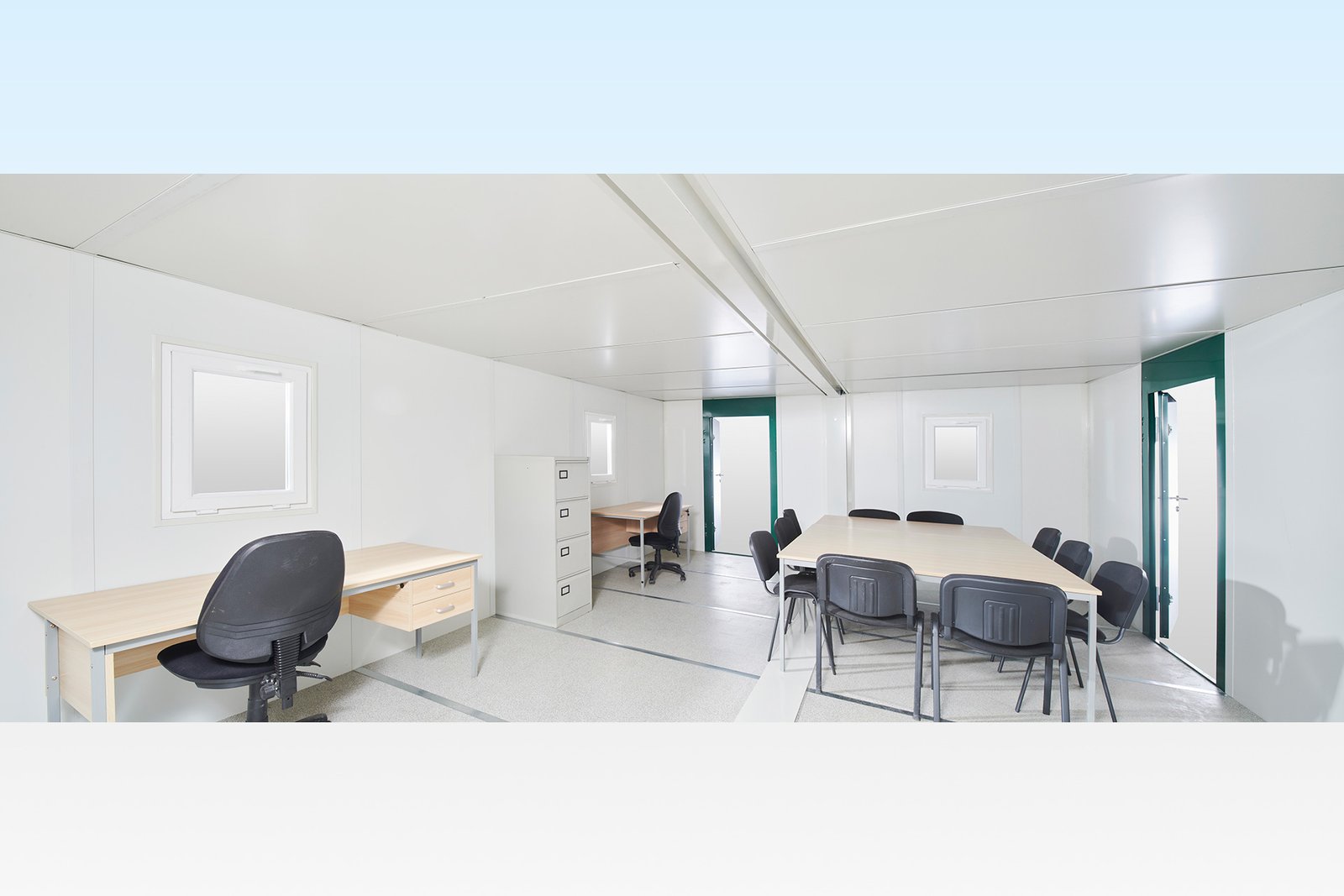

Side Linking Kit – Creating Open-Plan Space

The linking kit joins two cabins seamlessly into one large building . For example, the galvanised and powder-coated linking kit creates a wide, open-plan interior without a central wall. Likewise, you have the choice to use one or both pedestrian doors on any two of the four sides . Furthermore, you can even move the doors at a later time or relocate the whole building as needs change .

Insulated Construction – Year-Round Comfort

Proper insulation ensures comfortable working conditions throughout the year. For example, 50mm EPS insulation in walls and roof maintains stable internal temperatures. Likewise, the 18mm marine plywood floor with 2mm PVC linoleum covering provides durability and easy cleaning . Furthermore, double-glazed windows and insulated panels reduce heat loss. If your site operates year-round, this insulated office provides essential comfort.

6.5m x 4.6m Dimensions – Generous Space

The side linked configuration provides substantial floor area for large teams. For example, the external size measures 6.5m length x 4.6m width x 2.35m height . Likewise, the internal dimensions offer approximately 5.9m length x 4.38m width, totalling approximately 25.8m² of usable floor space . Furthermore, the 2.15m internal height provides comfortable headroom. If you need even larger space, you can add additional side linked 6.5m offices .

Electrical and Service Specifications

The office comes with full electrical provisions ready for connection . First, the building requires a 32 amp power supply . Second, we pre-install electrical wiring and lighting. Third, you receive multiple electrical sockets along the walls. Finally, the kit includes everything required for assembly – no specialist tools needed .

Premium Finish and Customisation

The office features a professional, durable finish. For example, powder-coated galvanised steel (RAL9002 White Grey) provides a clean, modern appearance . Likewise, you can choose which walls receive windows, doors, or solid panels . Furthermore, you can swap windows for surplus solid panels when you need privacy or interior wall space .

What’s Included in the Bundle

First, this bundle includes two 6.5m flat pack office cabins . Second, you receive the side linking kit to join them together . Third, we include 4 double-glazed windows . Fourth, you get 1-2 steel pedestrian doors with new improved double locking systems . Finally, the kit includes 50mm EPS insulation, 18mm marine plywood floor with PVC covering, electrical pre-wiring for 32amp supply, all necessary fixings, and assembly instructions.

For instance, you can choose to install your pedestrian doors on any two of the four sides . Likewise, you can request a different RAL colour finish for the external panels. Contact our team for custom configurations and larger side linked bundles.

Assembly and Lead Time

Assembly proves quick and straightforward with basic tools. For example, two people can assemble a single cabin in approximately 2 hours . Likewise, the side linked configuration requires an additional 1-2 hours to install the linking kit. Furthermore, you need no specialist tools – just a socket set .

Pros and Cons

Pros:

• Side linked configuration (6.5m x 4.6m open-plan space – 25.8m² floor area)

• Flat pack delivery (man-portable panels, no crane required)

• 50mm EPS insulation (year-round thermal comfort)

• 4 double-glazed windows (bright, energy-efficient)

• Flexible door placement (doors on any two of four sides)

• 32 amp electrical pre-wiring included

• Expandable (add more side linked cabins)

• Relocatable (knocks down for moving)

Cons:

• Requires level, firm ground for installation

• 32 amp power supply needed (not included)

• Assembly requires 2-3 people and 3-4 hours

• Pre-assembly lead time (typically 2-4 weeks)

Technical Specifications

Final Verdict

In summary, this side linked flat pack office delivers a large, open-plan workspace for sites where standard portable buildings cannot access. As a result, you can create a professional office environment in courtyards, car parks, or tight urban sites. Consequently, one site manager installed this 6.5m x 4.6m linked office in a restricted city-centre location and achieved full welfare compliance. Therefore, choose this side linked configuration if you need a large, accessible office building for restricted access sites. If you need even larger space, add additional side linked 6.5m cabins . If you need a smaller footprint, consider our single 6.5m cabin or 4.3m x 4.6m linked office . Thus, request a free quote with your site access details and delivery postcode today
