40ft Tunnel Container Workshop with Dual Access and Electrical Fit-Out

A 40ft tunnel container workshop with dual access and electrical fit-out transforms a standard shipping container into a fully functional, drive-through workspace featuring doors at both ends for convenient access and a complete electrical installation. For example, this workshop is perfect for tradespeople, maintenance crews, or site managers who need a secure, weatherproof workspace where vehicles, equipment, or materials can enter from one end and exit from the opposite end . However, unlike standard single-door containers that require reversing or maneuvering, this dual-access design allows straight-through traffic flow. As a result, you receive a turnkey workshop with lighting, power outlets, circuit breakers, and switchgear pre-installed, ready for immediate use . Learn about container conversion standards from official HSE guidelines.

Why Choose a Tunnel Container Workshop for Your Site?

Standard shipping containers lack the electrical infrastructure and dual access needed for productive workshop use. In contrast, this 40ft tunnel container workshop with dual access and electrical fit-out features custom-fitted double doors at both ends (typically 4,600mm total width when fully open) allowing forklifts, vehicles, or materials to pass straight through . Consequently, the electrical fit-out includes LED lighting, 240V double sockets (typically 4-6 units), consumer unit with RCD protection, and 16A or 32A inlet for site power connection . Moreover, the Corten steel construction provides a secure, weatherproof envelope for tools and equipment . Thus, you gain a productive, efficient workspace that integrates seamlessly with site operations.

Dual Access (Tunnel Configuration) – Workspace Efficiency

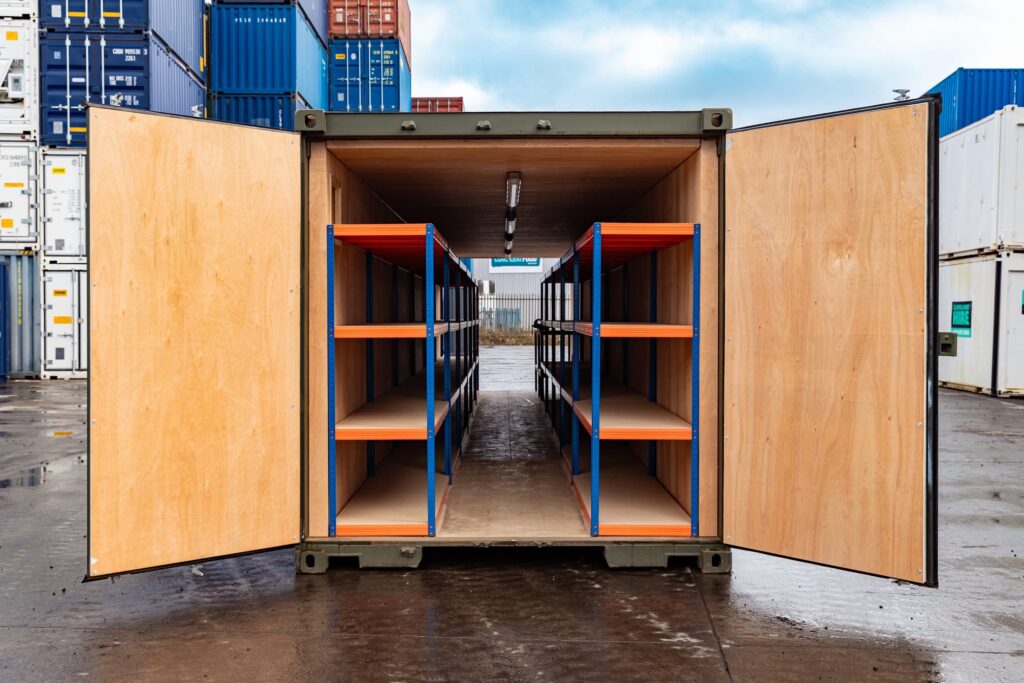

The tunnel configuration with doors at both ends is ideal for workshop workflows. For example, vehicles or pallets can enter from one side, be worked on in the middle, and exit from the other side. Likewise, the internal space can be zoned into receiving, working, and dispatch areas accessed from opposite ends . If you are repairing vehicles, fabricating materials, or assembling equipment, this drive-through layout significantly improves workflow efficiency by eliminating the need to reverse or reposition.

Electrical Fit-Out Specifications

The complete electrical installation makes this a turnkey workspace. For example, LED strip lighting (4-6 units) provides bright, energy-efficient illumination across the full 40ft length . Likewise, 240V double sockets (4-6 units) are strategically spaced along both walls for powering tools, chargers, and equipment . Furthermore, the consumer unit includes RCD and MCB protection for safety, with a 16A or 32A inlet (typically 16A for 3.68kW max load) allowing connection to site power via armoured cable . If you require higher power for heavy machinery, a 3-phase electrical fit-out is available on request.

Workshop-Specific Features

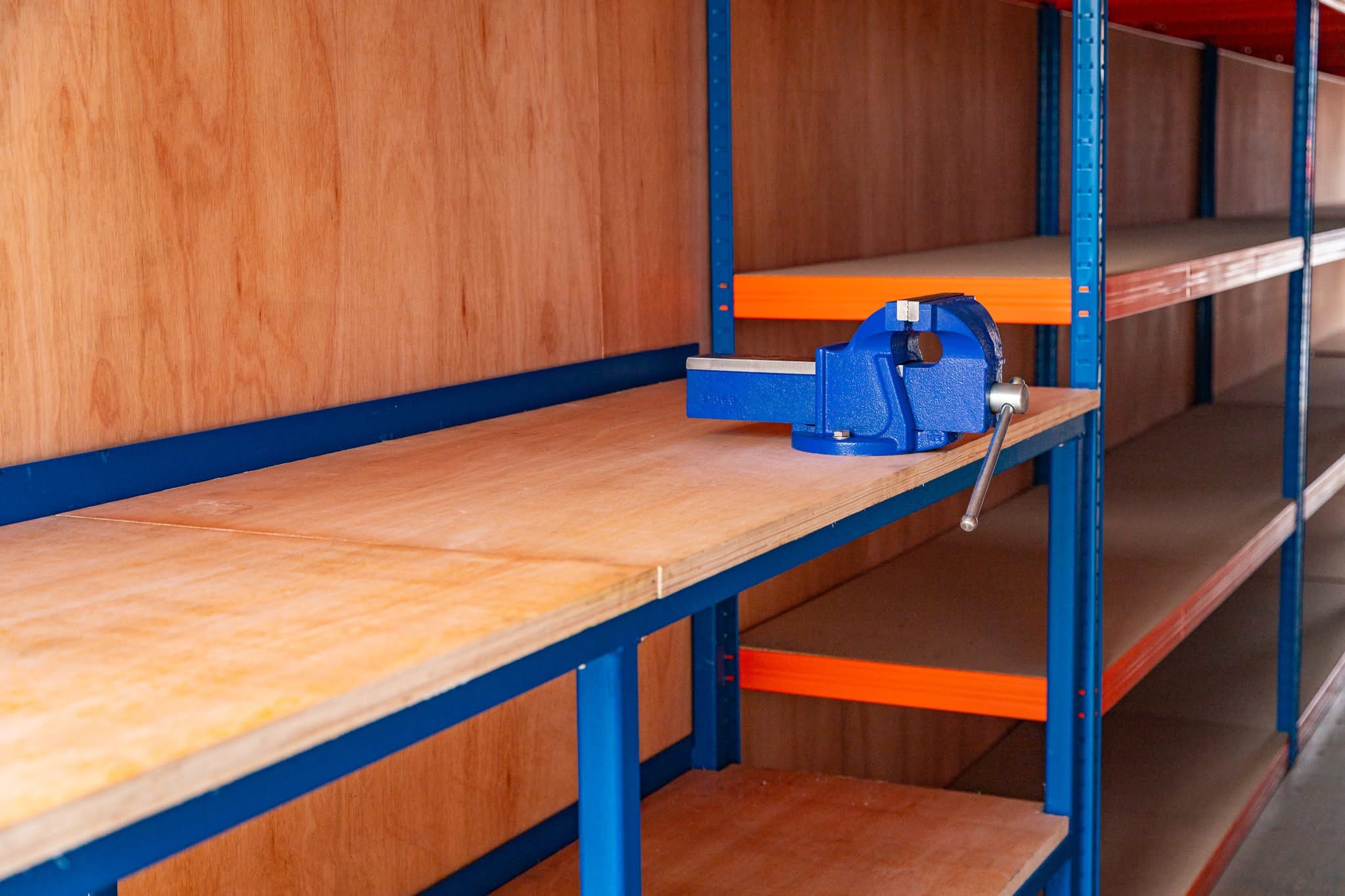

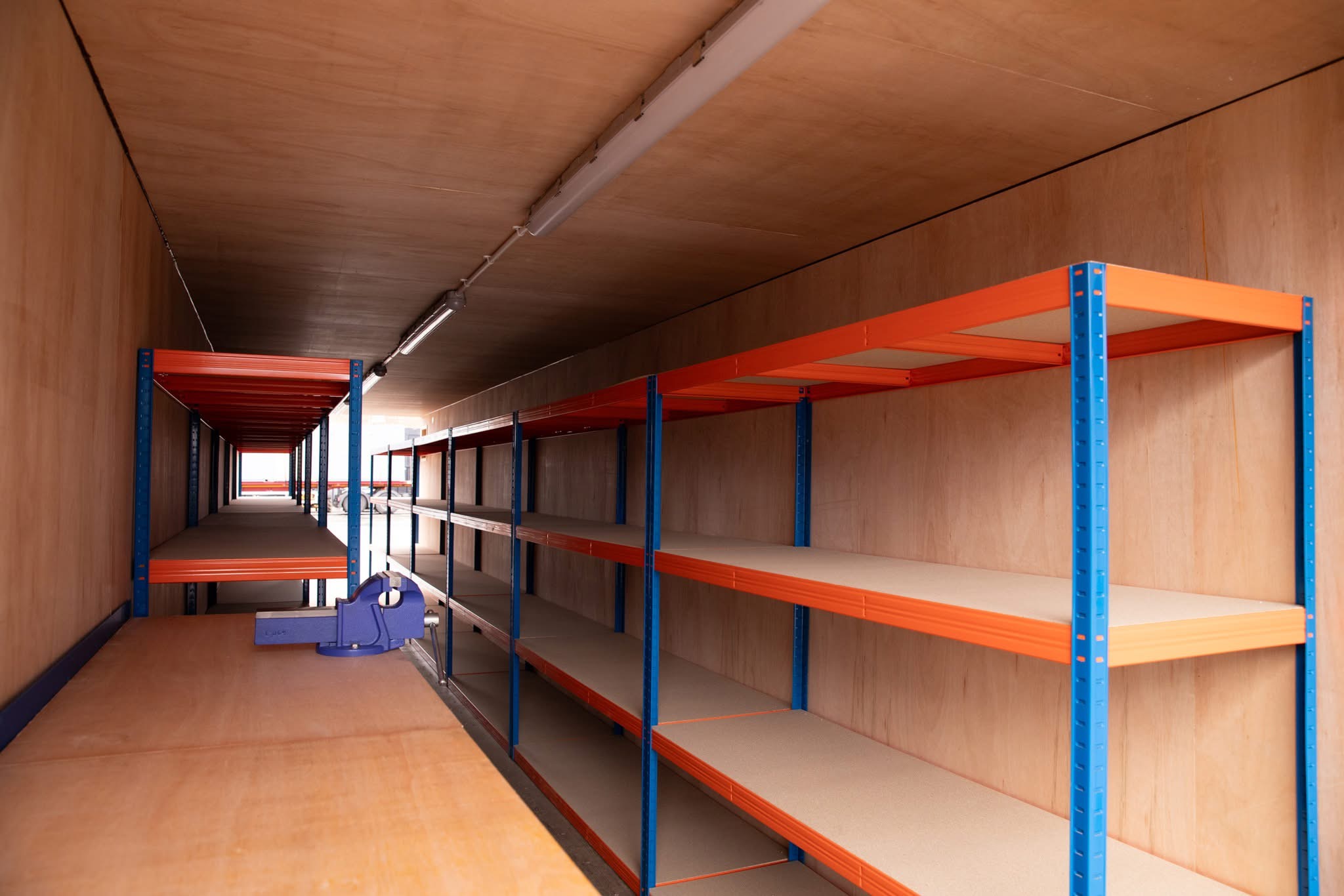

Beyond dual access and electrical fit-out, this container workshop includes features tailored for productive work. For instance, interior lining (plywood or steel) provides a finished, easy-to-clean surface for mounting tool racks, shelving, and pegboards . Similarly, the wind and watertight certification ensures tools and materials stay dry . Furthermore, insulation can be added (spray foam or rigid board) to manage internal temperature and reduce condensation . Finally, the 28mm marine ply floor supports heavy equipment, workbenches, and vehicle loads up to 26,000 kg total payload.

Used Container Base – Cost-Effective Conversion

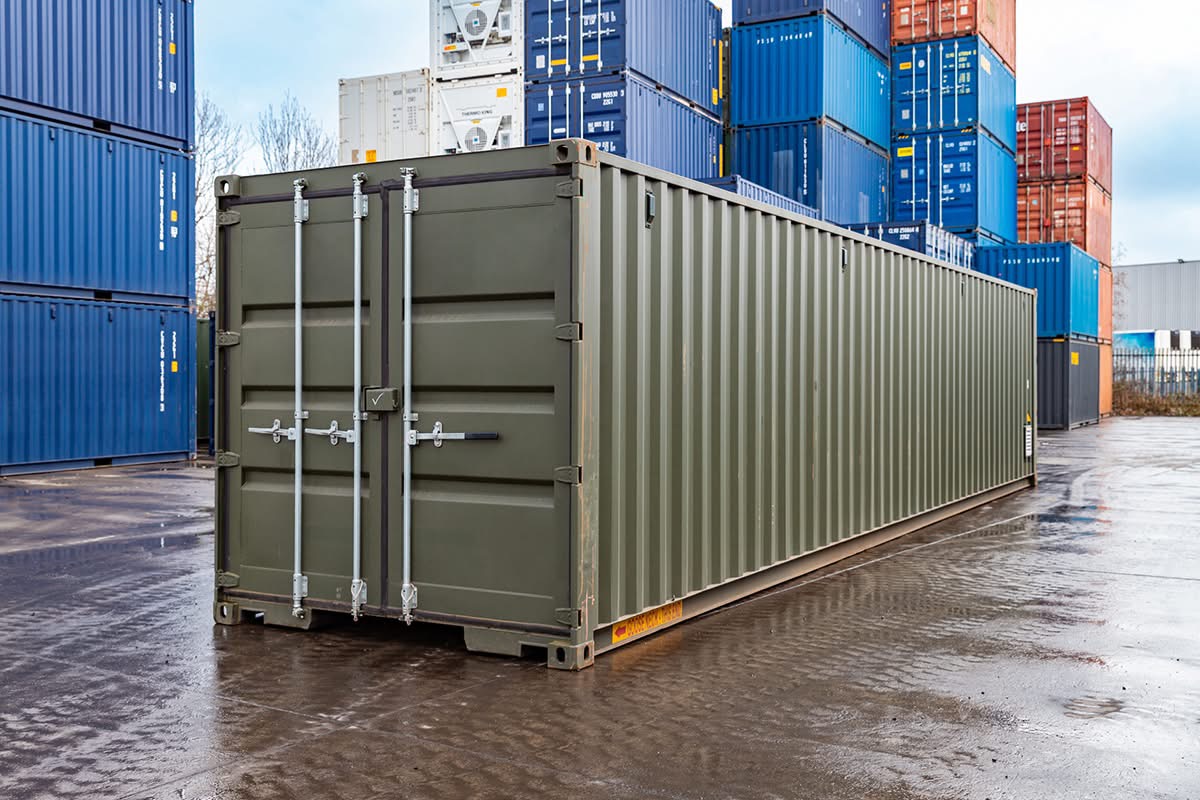

This workshop is built on a used 40ft shipping container base for maximum value. For example, typical used 40ft tunnel containers are 8-12 years old with cosmetic wear (dents, scratches, faded paint) but remain structurally sound with wind and watertight seals . Likewise, double doors at both ends are fitted with heavy-duty locking rods, padlock hasps, and rubber seals . If you need a pristine workshop for customer-facing locations, consider one-trip or new containers. For workshops, used provides the best value.

CSC Certification and Structural Integrity

CSC plates confirm structural safety for intermodal shipping. For example, this container typically includes a valid CSC safety plate (ISO 45G1 classification for 40ft dry container with double doors) . Likewise, the plate confirms the container has passed structural tests for stacking, lifting, and floor strength. If you need to relocate the workshop overseas, this certification is essential for shipping . For static site use, CSC certification ensures the container meets international construction standards.

What’s Included and Optional Upgrades

First, every unit includes the 40ft tunnel container with double doors at both ends. Second, electrical fit-out: LED lighting (4-6 units), 240V double sockets (4-6 units), consumer unit (RCD/MCB), and 16A or 32A inlet . Third, wind and watertight certification with weather seals . Finally, 28mm marine ply floor and 2-4 ventilation vents.

For instance, add insulation (spray foam or rigid board) for temperature control . Likewise, a workbench with integral storage can be fitted . Furthermore, window cut-outs with fire-rated glass provide natural light . Finally, a full repainting service is available in any RAL colour. Contact our container team for custom configurations.

Pros and Cons

Pros:

• Dual access (doors both ends – drive-through/tunnel configuration)

• Complete electrical fit-out (LED lighting, power sockets, RCD consumer unit)

• Turnkey workshop (ready for immediate use)

• CSC certified (valid for intermodal shipping – optional)

• Corten steel construction (secure, weatherproof)

• 28mm marine ply floor (supports heavy loads)

• Significantly cheaper than permanent building construction

• Fully relocatable (forklift pockets and crane lugs)

Cons:

• Requires 3-phase or single-phase site power connection (16A or 32A inlet)

• Used condition includes cosmetic wear (dents, scratches)

• Significant delivery space required (110ft straight line clearance)

• Non-high cube (standard height – 7ft 10in interior)
