40ft Shipping Container Office with Restroom and HVAC System

This 40ft shipping container is modified for office use including insulation, HVAC, restroom facilities, windows, and electrical components.

Closed-cell spray foam insulation is applied to interior walls, ceiling, and floor at a minimum thickness of 1.5 inches, then covered with fire-retardant plywood paneling. The floor is covered with commercial-grade vinyl sheeting over the existing marine-grade plywood subfloor.

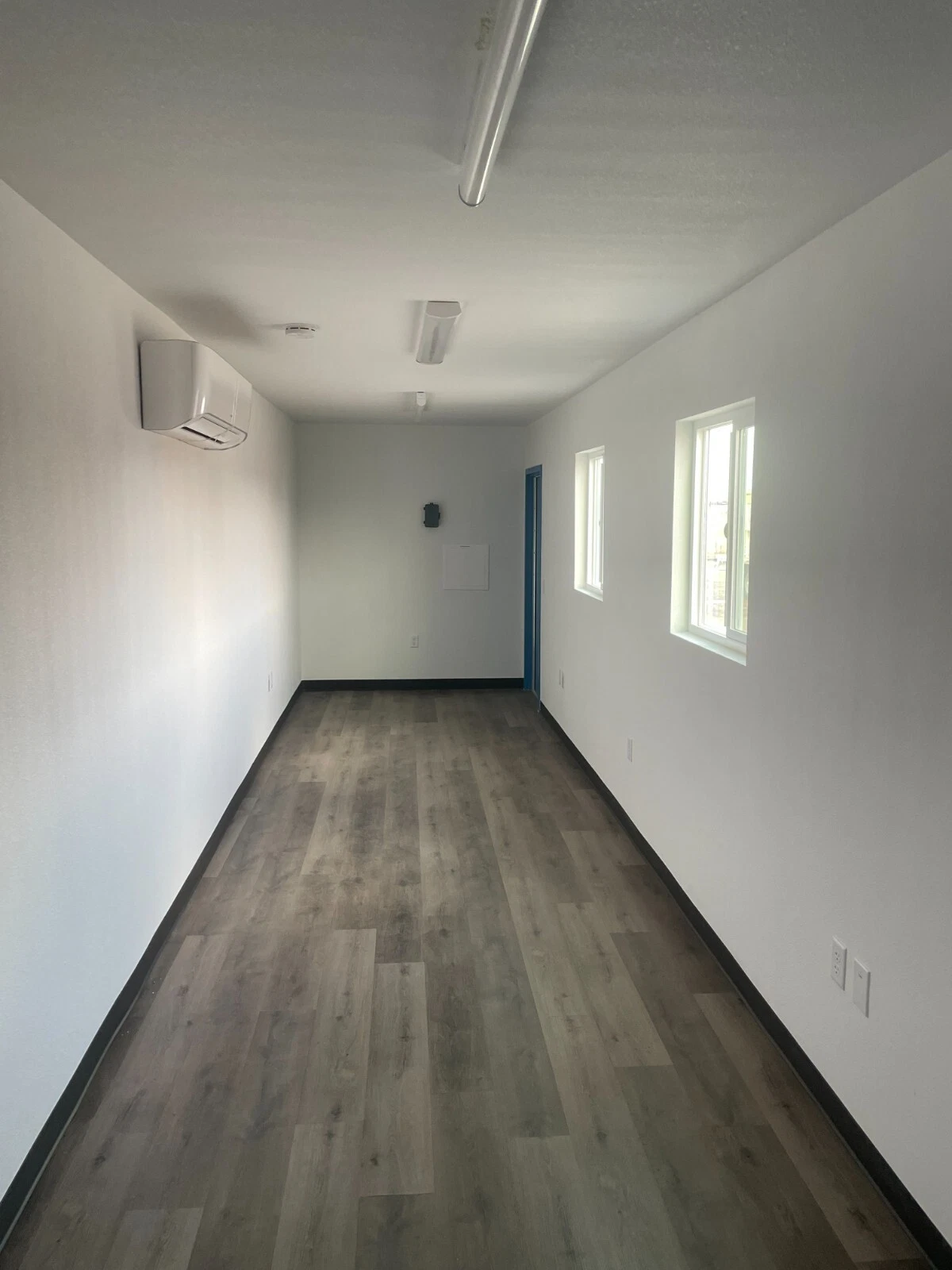

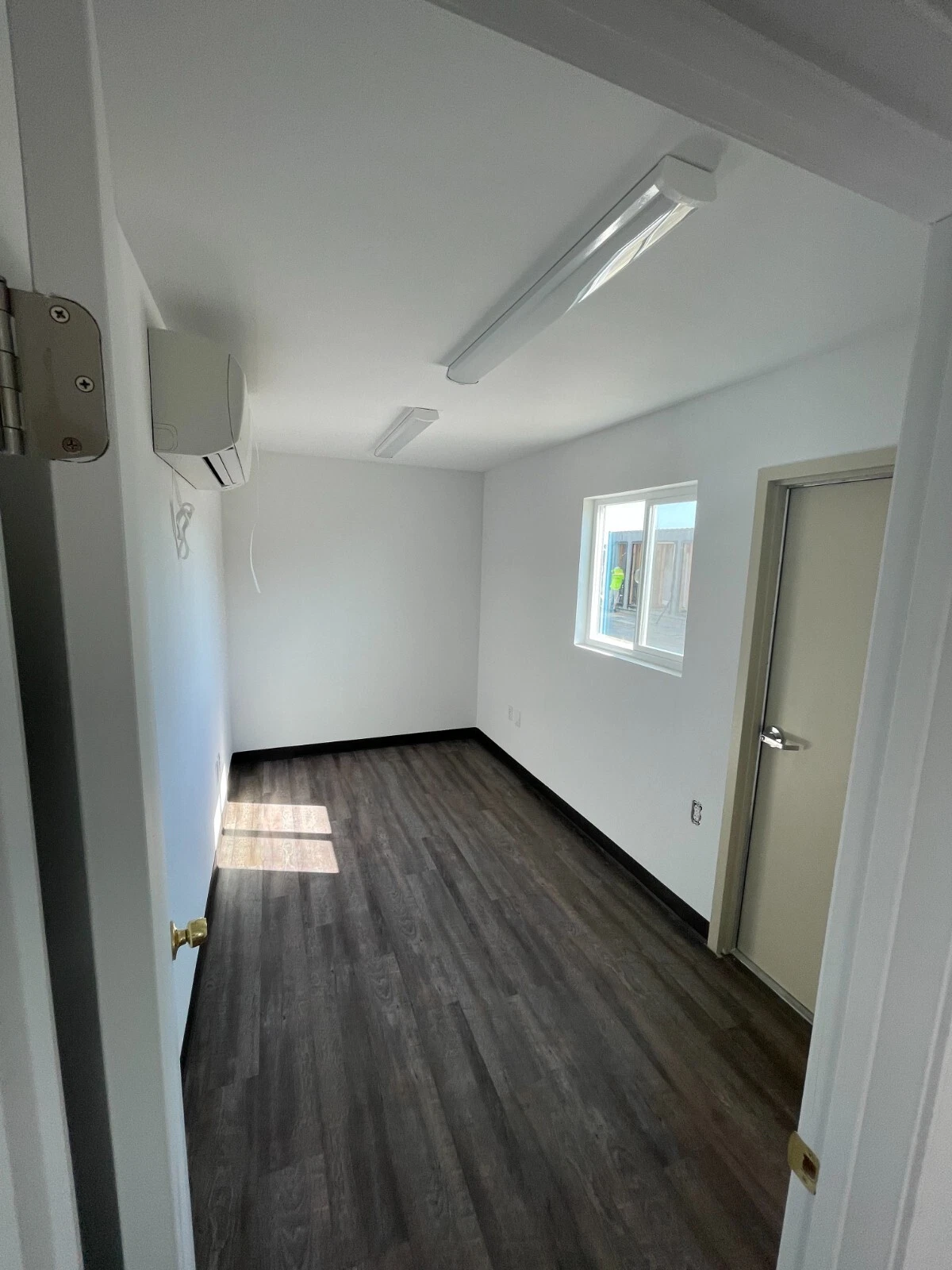

The 24,000 BTU mini-split HVAC system provides heating and cooling. The system includes an interior air handler and exterior condenser unit. The condenser unit is mounted to the exterior wall. Electrical connection requires a licensed electrician.

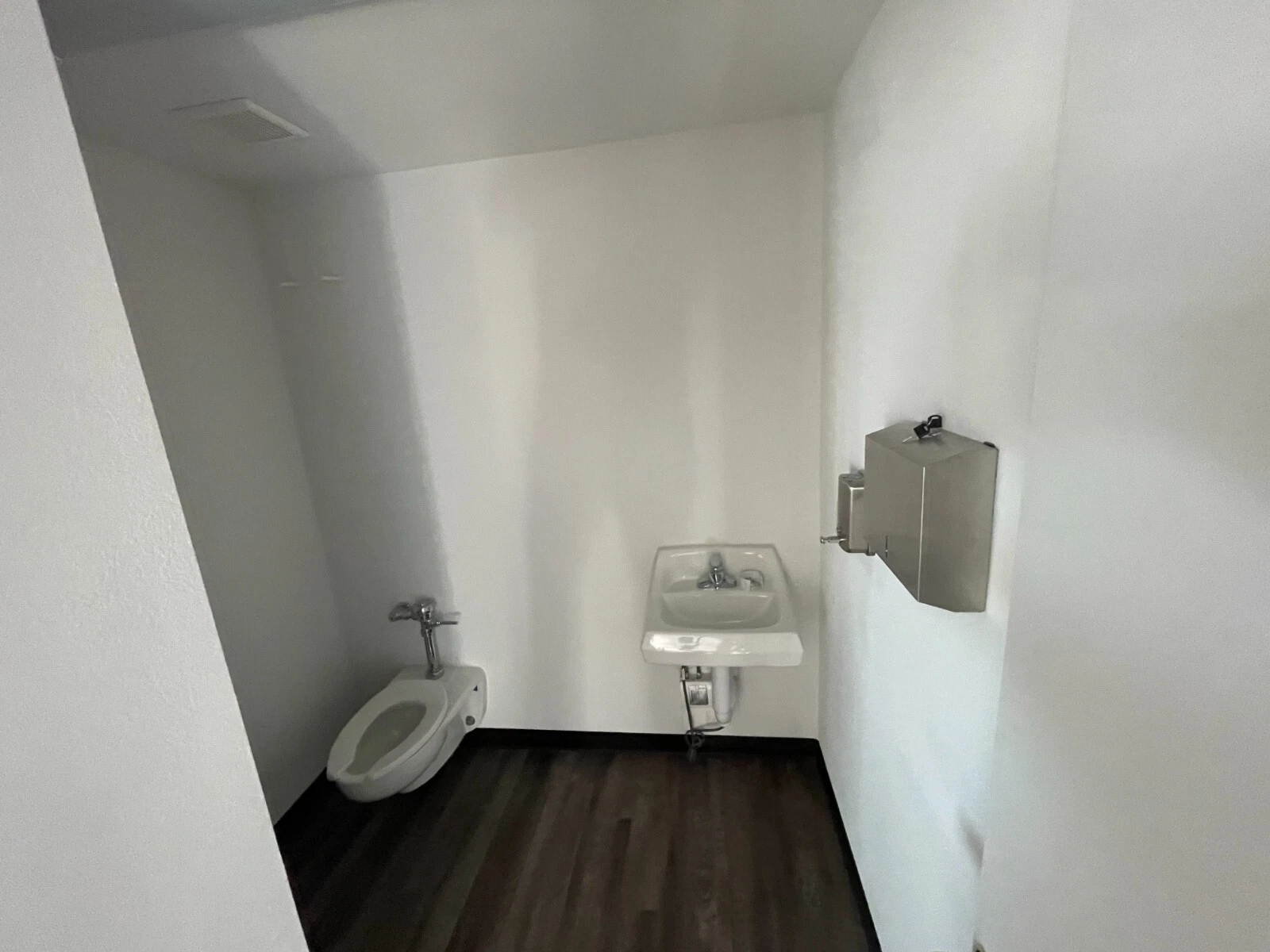

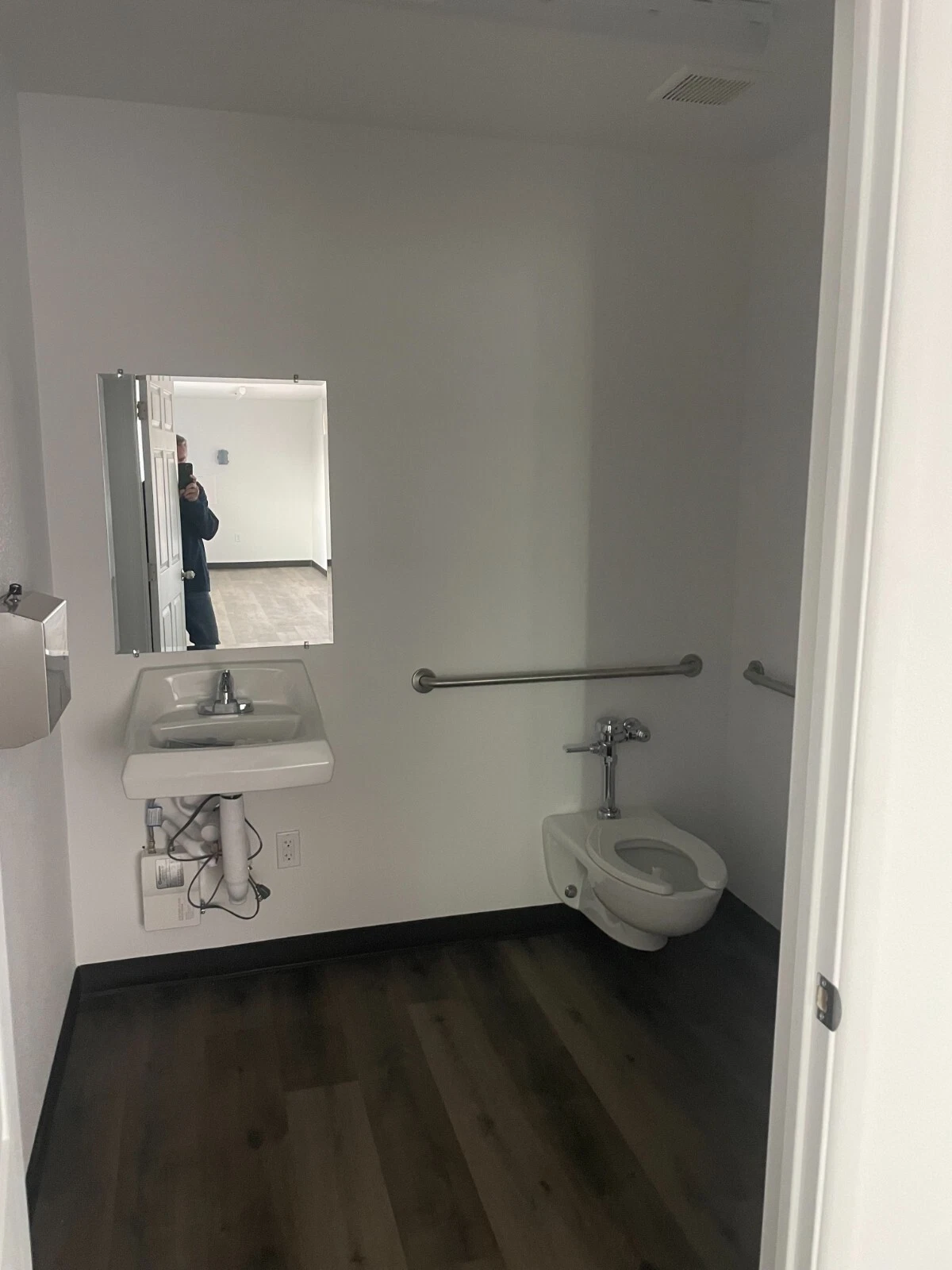

The interior restroom includes a toilet and sink with plumbing connections. Water supply and waste connections are located on the exterior wall. The purchaser is responsible for connecting to local water and sewer systems or providing appropriate holding tanks.

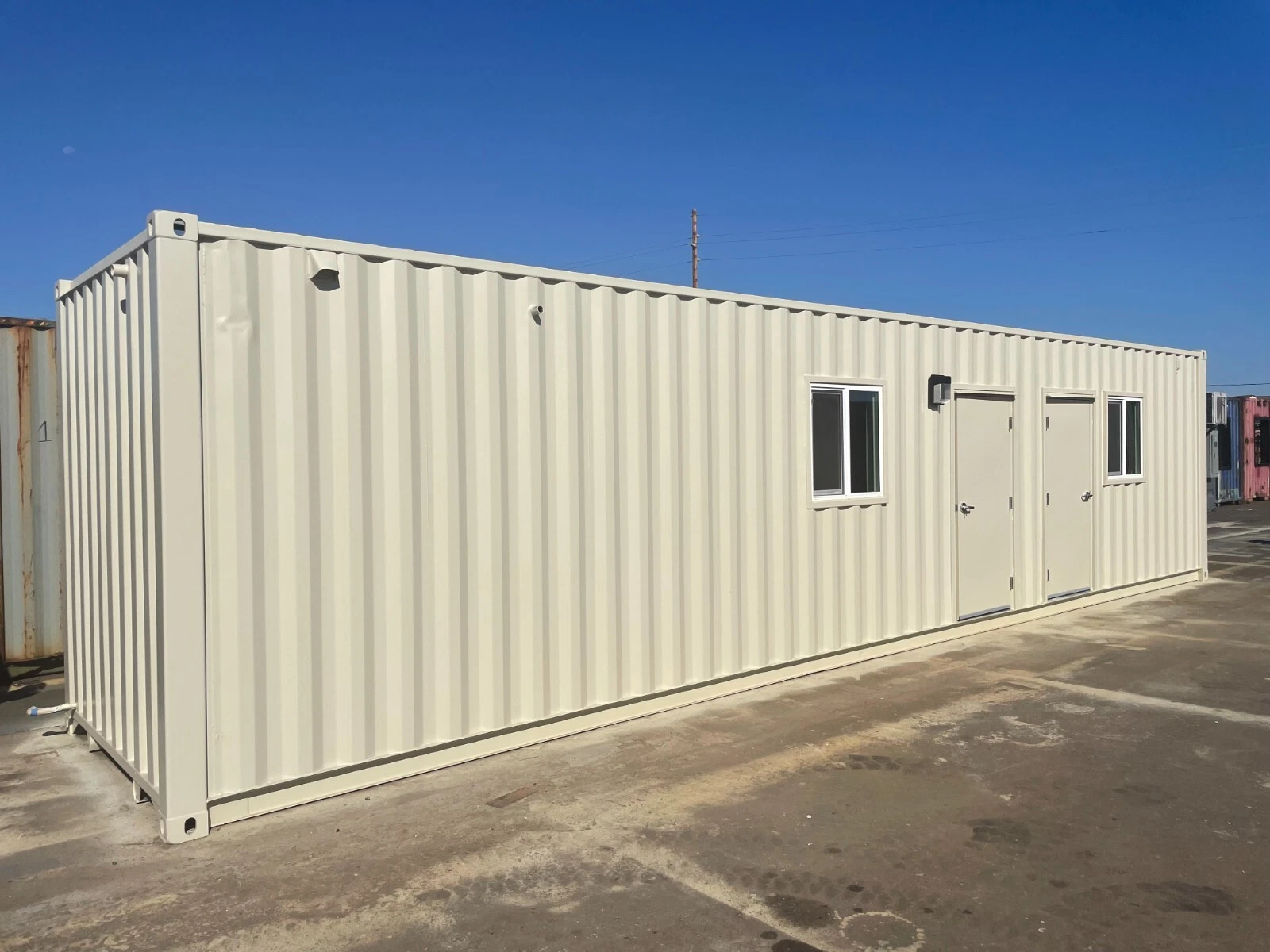

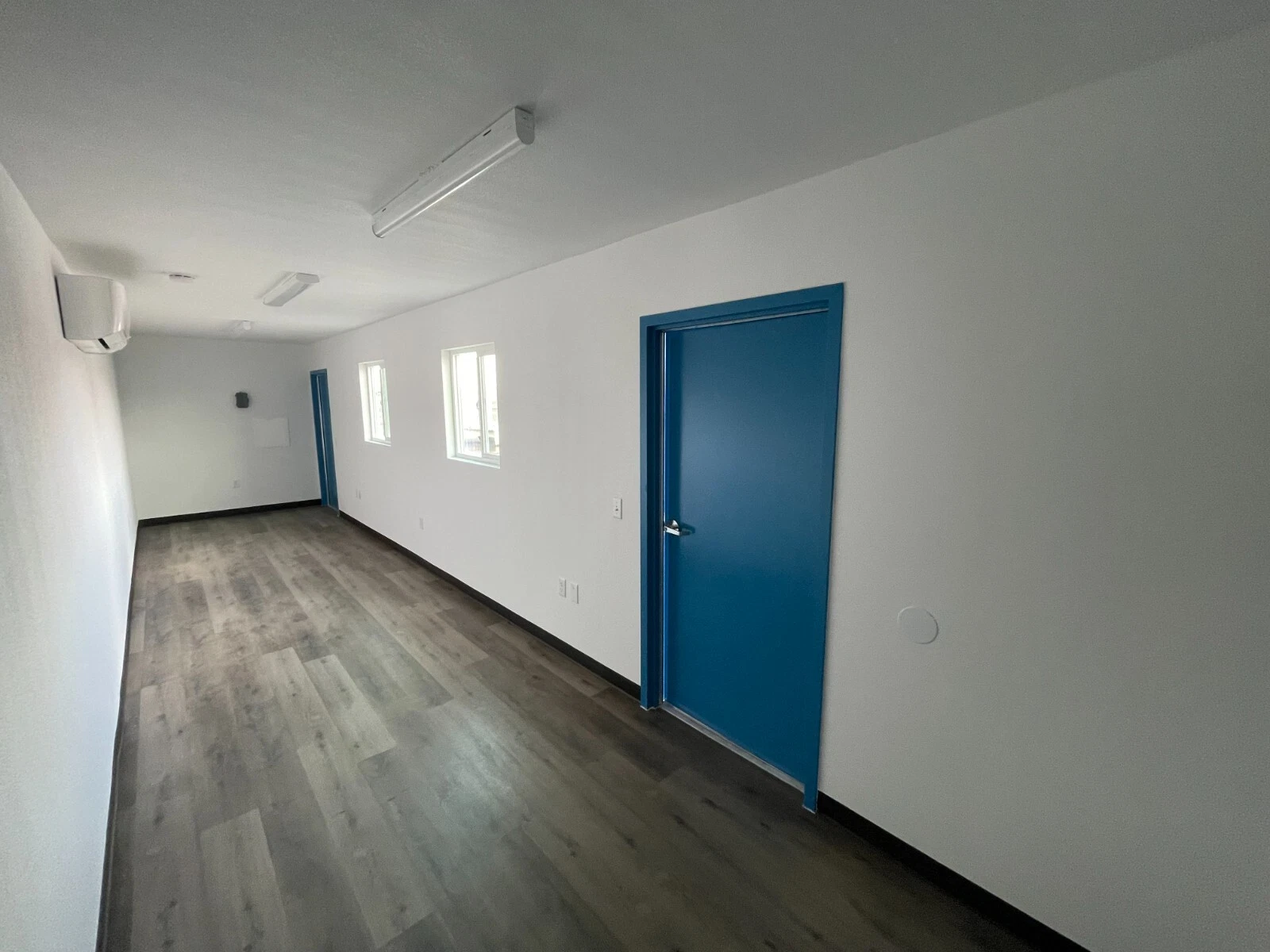

Two 36in x 36in windows are installed on one sidewall. Dual entry doors are installed on the same sidewall. The original cargo doors at one end remain fully operational with locking bars intact.

The electrical system includes a sub-panel, interior lighting, and outlets. Specific electrical specifications are available upon request.

Technical Specifications

• Container Type: ISO standard, Corten steel, modified
• External Length: 40ft
• External Width: 8ft
• External Height: 8ft 6in
• Internal Length: approximately 39ft 5in
• Internal Width: 7ft 8in
• Internal Height: 7ft 9in
• Insulation Type: Closed-cell spray foam, 1.5in thickness
• HVAC System: 24,000 BTU mini-split (heating and cooling)
• Windows: Two, 36in x 36in, sliding
• Entry Doors: Two, lockable
• Restroom: Toilet and sink with plumbing connections
• Flooring: Commercial-grade vinyl
• Tare Weight: approximately 10,000 lbs
• Steel Gauge: 14-gauge corrugated sidewalls
• Forklift Pockets: 4 (end base locations)

Intended Use

Suitable for job site office, remote workspace, construction zone administration, or temporary operational headquarters. Designed for placement on compacted gravel, concrete pad, or level ground. HVAC system and electrical system require connection to external power sources by licensed professionals. Plumbing requires connection to water supply and waste disposal systems. Not certified for residential habitation or medical use.

Package Includes

• One modified 40ft shipping container
• Insulated walls, ceiling, and floor with plywood lining
• 24,000 BTU mini-split HVAC system
• Interior restroom with toilet and sink
• Two lockable entry doors
• Two windows
• Vinyl flooring
• One pair of cargo doors with locking bars
