40ft High Cube Container with Multi-Store Mezzanine Configuration – 7 Bay Self Storage

A 40ft high cube container with multi-store mezzanine configuration – 7 bay self storage transforms a single shipping container into a high-density self-storage facility, combining dual-level access with multiple secure compartments to maximize revenue per square foot . This unit is perfect for urban mini-warehousing, where land is expensive and maximizing vertical space increases ROI . Unlike standard containers limited to ground-floor storage, this configuration features a structural mezzanine level, splitting the 40ft length into 7 individual bays (typically 3-4 bays on the ground floor and 3-4 bays on the mezzanine level) . As a result, you receive a CSC-certified, fire-rated self-storage solution that doubles storage capacity without doubling your footprint .

Why Choose a Multi-Store Container Self Storage Configuration?

Single-story container storage leaves valuable vertical space unused, limiting rental income. In contrast, this multi-store mezzanine configuration uses the high cube height (9ft 6in exterior, approx. 8ft 10in interior) to create a second level of storage accessed via integrated staircase or ladder . Consequently, the 40ft length accommodates 7 individual storage bays, each with secure lockable doors and ventilation to prevent moisture buildup . Moreover, the mezzanine structure is engineered to support live loads, with steel framing and decking rated for typical self-storage weight requirements (approx. 4.8kN/m² – double check for heavy storage) . Thus, you gain maximum storage density for high-demand urban locations.

Key Features of This 7 Bay Mezzanine Configuration

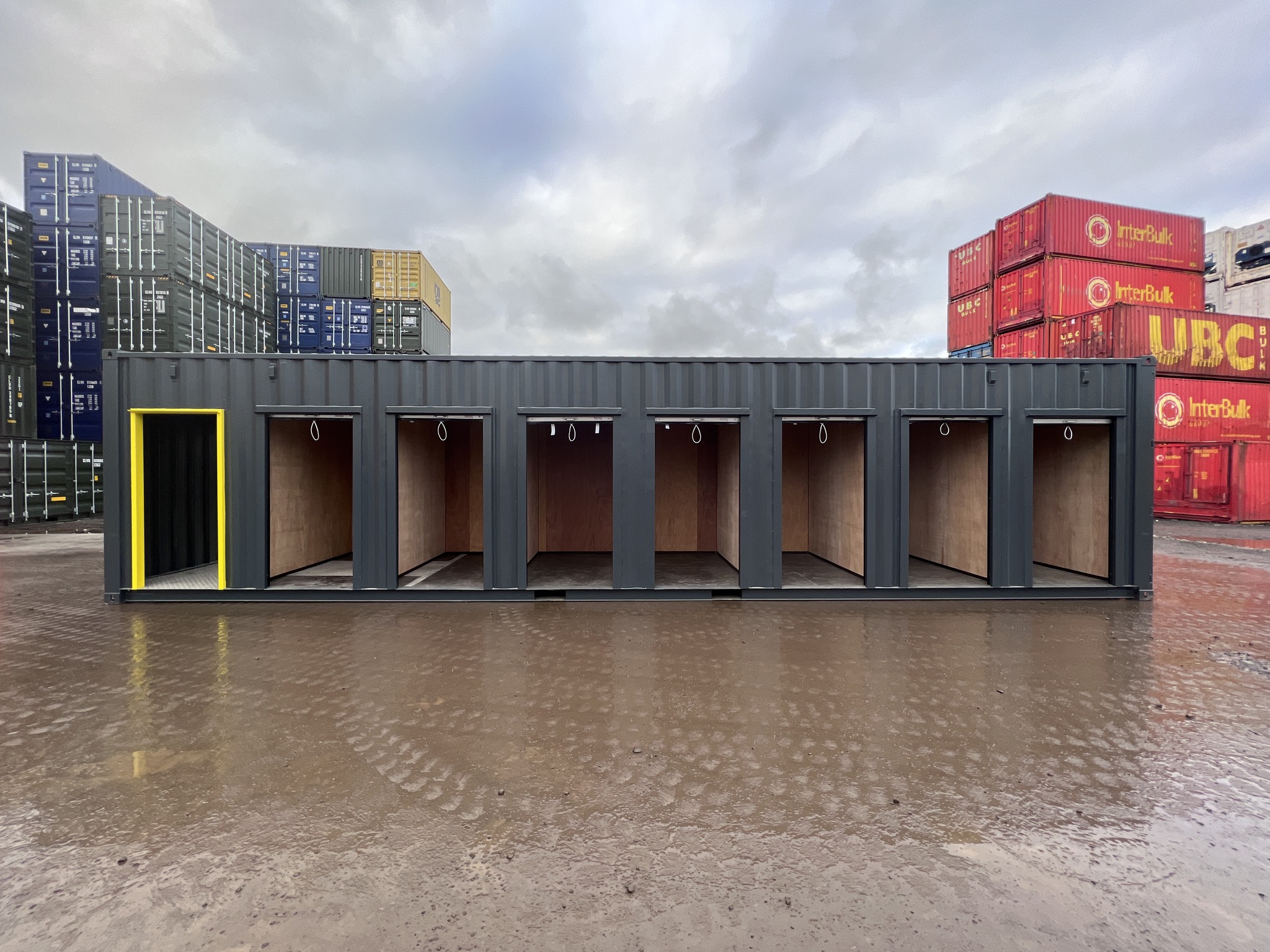

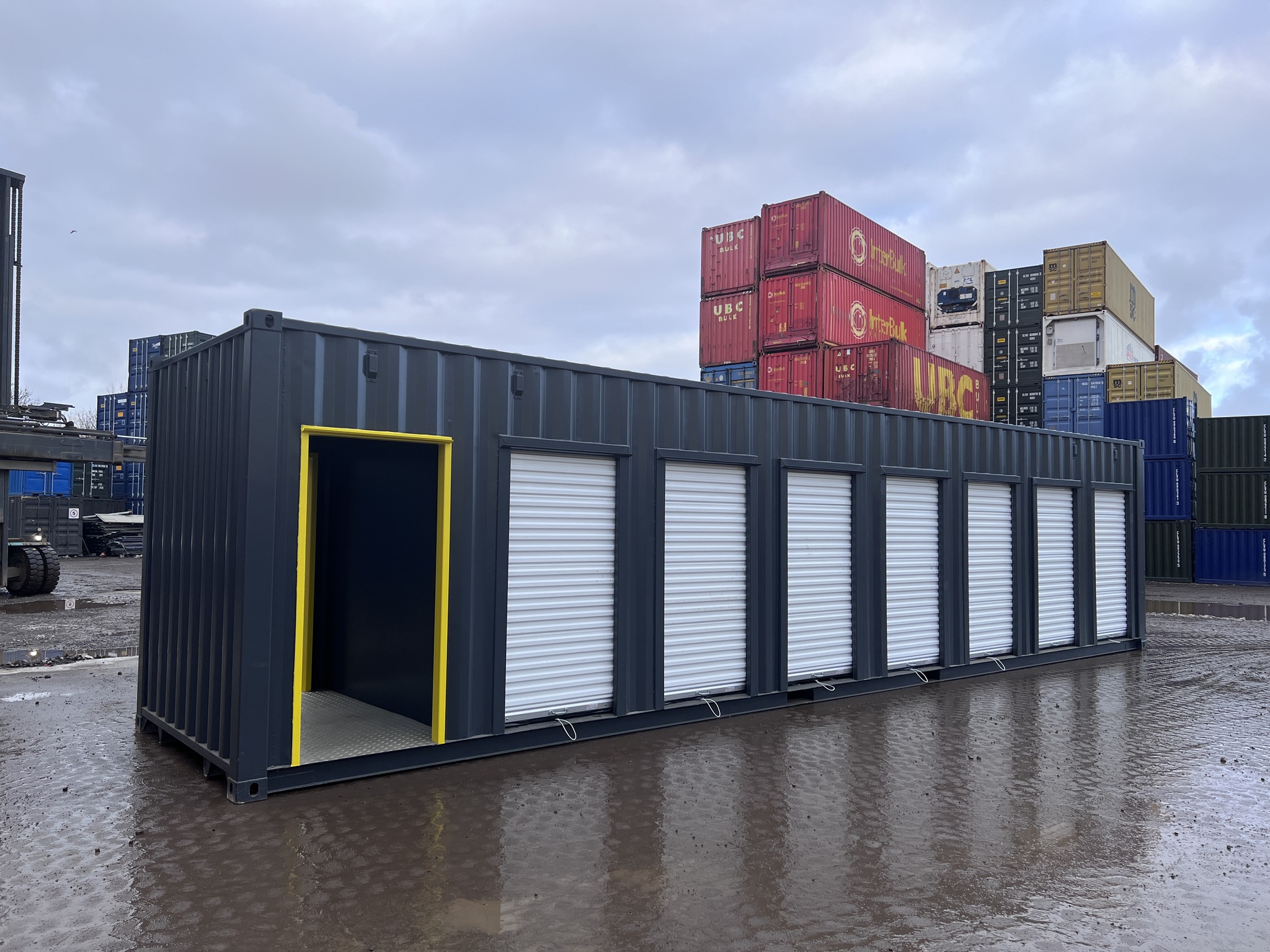

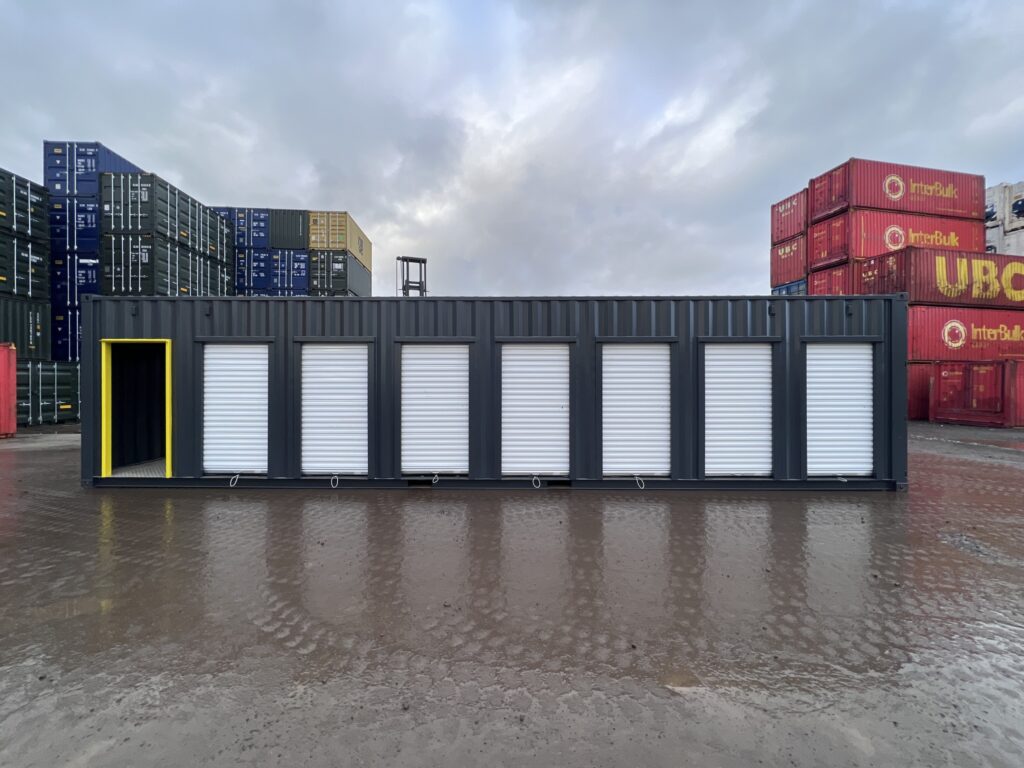

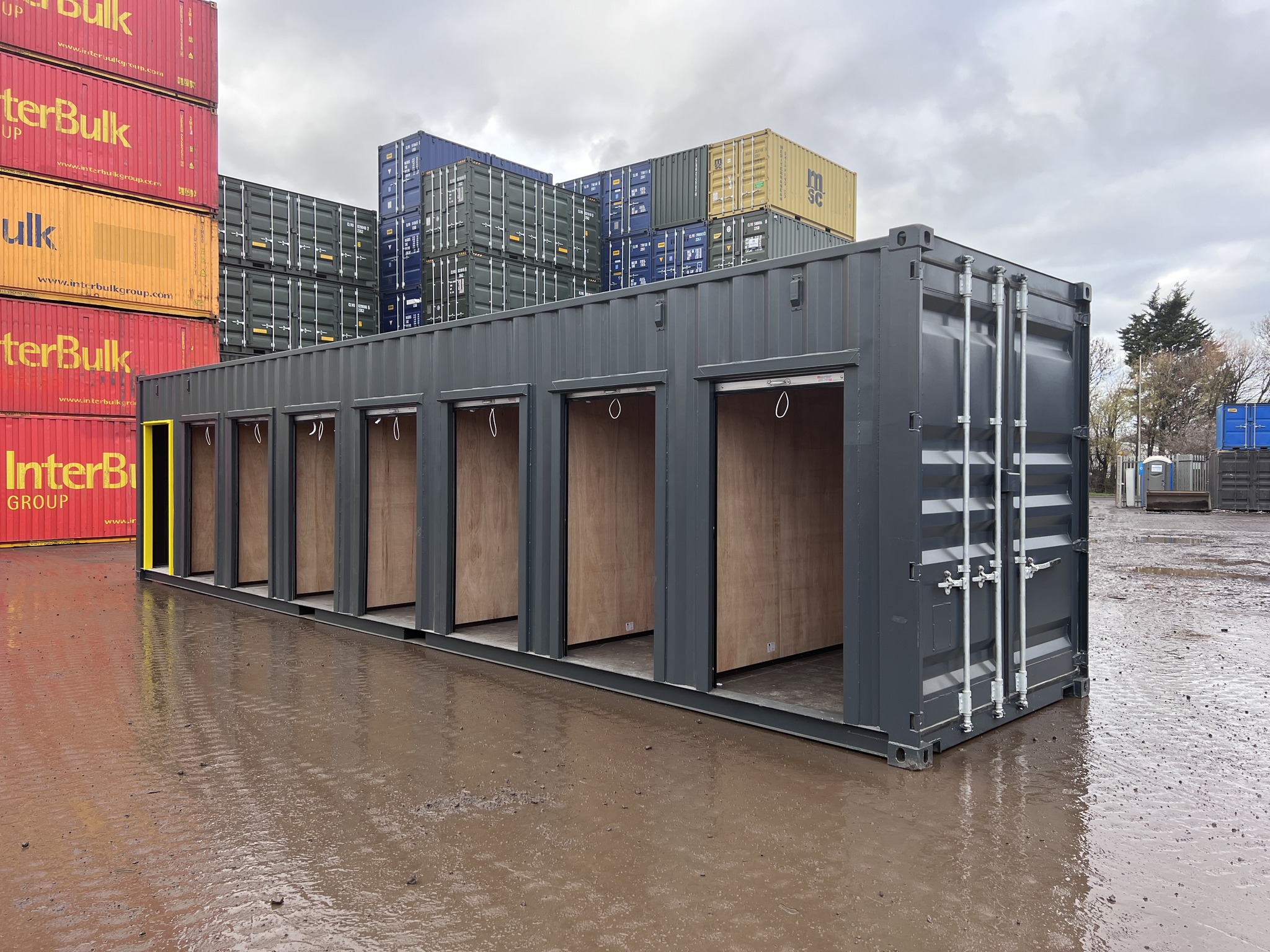

The multi-store layout and dedicated access design are the defining features of this unit. The container interior is divided by 6 steel partition walls, creating 7 separate storage bays along the 40ft length, each typically sized 5-6ft wide x 8ft deep . The mezzanine floor covers approximately 50-60% of the length at one end, accessed by a staircase integrated into the ground floor layout . Access to mezzanine bays is via a central aisle on the upper level. Lockable doors with anti-tamper lock boxes provide individual bay security for tenants .

Mezzanine Structural Design

The mezzanine level is purpose-engineered for self-storage loading. Steel support columns transfer loads to the container floor, with the 28mm marine ply floor distributing weight effectively . The mezzanine decking is typically 18mm plywood with a non-slip coating, rated for standard foot traffic . For heavy storage, steel chequer plate (3mm Durbar) upgrades are available. Handrails and kickboards along the mezzanine edge meet workplace safety standards, while the integrated staircase features anti-slip treads .

7 Bay Configuration – Layout Options

The 7-bay layout can be arranged in several configurations. For example, a 4+3 split: 4 ground floor bays (approx. 6ft wide each) at the front, with 3 mezzanine bays accessed from the rear . Alternatively, a 3+4 split: 3 larger ground floor bays with a longer mezzanine deck above. The mezzanine can span the full length with multiple access stairs if needed. Each bay has independent ventilation to meet building codes for storage units.

Ventilation and Climate Control

Proper ventilation is crucial for self-storage to prevent mold and musty odors. Each storage bay includes 2 ventilation grilles, promoting passive airflow . For climate-controlled storage, insulation (spray foam or rigid board) can be added, with the mezzanine design accommodating ductwork and distribution . Installing a 3-5 ton HVAC system in the container manages temperature for the entire unit .

CSC Certification and Static Use

The container retains CSC certification for structural integrity, confirming safe stacking and lifting . However, the mezzanine configuration is intended for static ground storage only, not intermodal shipping. For ground-based self-storage, CSC certification ensures the base container meets international construction standards. Local building codes may require permits for container-based self-storage conversion and occupancy .

What’s Included

First, every unit includes the 40ft high cube Corten steel base container (used or one-trip condition). Second, 6 steel interior dividing walls creating 7 storage bays. Third, mezzanine steel structure with plywood decking, handrails, and integrated staircase. Fourth, lockable doors with security lock boxes (7 total). Finally, 2 ventilation grilles per bay, CSC plate, and lifting points for repositioning.

For instance, add spray foam insulation and a mini-split HVAC system for climate-controlled self-storage. Likewise, add a security camera system and access control gate for facility-wide security. Contact our container team for custom bay sizing and mezzanine layouts.

Pros and Cons

Pros:

• Multi-store configuration doubles storage capacity vs. standard container

• 7 individual secure bays with lockable doors and lock boxes

• High cube height (9ft 6in exterior, approx. 8ft 10in interior)

• Maximizes rental income per square foot of land

• Ideal for urban self-storage and mini-warehousing

• CSC certified (structural integrity for static use)

• Ventilation per bay (2 grilles each) prevents moisture issues

• Modular and relocatable

Cons:

• Higher upfront cost than standard containers

• Requires level foundation and local planning approval

• Mezzanine reduces clear height in ground floor bays

• Intended for static ground storage only (not intermodal shipping)

Technical Specifications

Final Verdict

In summary, this multi-store mezzanine container delivers maximum storage density for self-storage operators, transforming a 40ft footprint into a 7-bay mini-warehouse . As a result, you can generate rental income from up to 7 tenants using the same land area as a single container. Consequently, one self-storage operator increased revenue by 100% per container using this mezzanine configuration. Therefore, choose this 7-bay mezzanine design if land costs are high and maximizing ROI is your priority. If you need a simpler ground-floor-only configuration, our 8-side-door container offers 8 compartments without mezzanine complexity. If you require a smaller footprint for a pilot project, consider our 20ft mezzanine container with 3-4 bays. Thus, request a free quote with your preferred bay count and layout today. Return to our modified container home page for other self-storage configurations and accessories.
