20ft Flat Rack Container – Collapsible End Walls

This 20ft flat rack container – collapsible end walls provides an open platform for transporting or storing over-sized cargo that won’t fit inside standard enclosed containers. For example, you can load heavy machinery, industrial equipment, pipes, timber, or vehicles directly onto the flat rack’s reinforced floor. Therefore, this design eliminates side walls and allows the end walls to fold flat for unrestricted access.

Why Choose a Flat Rack Container with Collapsible Ends?

Standard flat rack containers have fixed end walls that limit loading from the ends. In contrast, this model features end walls that fold down completely, giving you unobstructed access from all four sides. Consequently, you can load lengthy cargo that overhangs the platform when you need extra length. Moreover, folding the end walls reduces storage space by up to 60% when you keep the container empty. Thus, you gain maximum loading flexibility and storage efficiency.

Key Features of This Flat Rack Container

The collapsible end walls and open side design make this flat rack container stand out. For instance, the end walls fold down flat against the floor using a simple manual mechanism. Similarly, the heavy-duty steel platform (approximately 6,058mm long x 2,438mm wide) supports extreme point loads without bending. Furthermore, lashing rings (typically 8-12 along the side rails and floor) let you secure cargo firmly. Finally, the CSC safety plate confirms structural integrity for intermodal shipping.

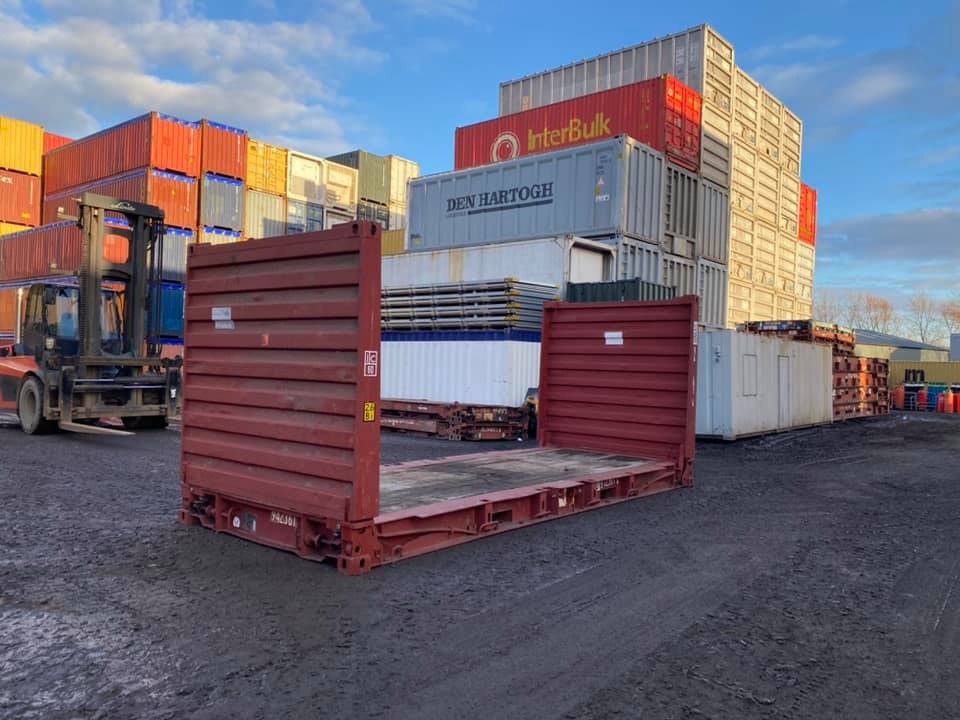

Collapsible End Walls – How They Work

The fold-down end walls make this container versatile for different cargo types and storage needs. First, you unlock the end wall latches using a standard tool or lever. Second, you fold the end wall down flat against the platform manually with minimal effort. Third, you have unobstructed access for loading long or overhanging cargo from either end. Finally, you raise the end walls and secure the latches for transport. If you need to store the container empty, you can collapse both ends to reduce storage space significantly.

Open Sides – Maximum Loading Flexibility

The open side design provides exceptional access for over-sized cargo from both sides. For example, you can load cargo using a forklift from either side without needing to reach over the end walls. Likewise, overhead cranes can lower cargo directly onto the platform from above. Furthermore, the flat rack platform accommodates cargo that exceeds standard container width limits. If you load wide machinery, pipes, or timber, the open sides eliminate dimension restrictions entirely.

Heavy-Duty Platform – Built for Extreme Loads

The reinforced platform handles the most demanding cargo applications. For example, the steel floor (typically 28mm marine plywood or steel chequer plate) withstands heavy point loads that would bend a standard container floor. Likewise, the platform supports payloads up to approximately 25,000-28,000 kg, depending on configuration. Furthermore, the platform integrates lashing rings at regular intervals for cargo securement. If you transport heavy machinery, generators, or transformers, this platform provides the strength you need.

Lashing Rings – Securing Heavy Cargo Properly

Proper cargo securement is essential for flat rack containers to prevent load shifts. For example, the container typically features 8-12 lashing rings along the side rails and additional rings embedded in the floor. Likewise, each ring is rated for heavy loads (typically 1,000-2,000 kg safe working load). Furthermore, you can attach chains, straps, or wire ropes to these rings to secure cargo against movement during transport. If you transport heavy machinery or tall equipment, these lashing rings provide reliable securement points.

CSC Certification and Intermodal Transport

The CSC plate confirms that this flat rack container meets international safety standards. For example, the plate certifies that the container has passed structural tests for stacking, lifting, and floor strength. Likewise, the CSC certification allows legal transport on ships, trains, and trucks. If you need to ship over-sized cargo internationally, this certification is essential for carrier acceptance. Thus, you gain flexibility for both static storage and intermodal transport.

20ft Dimensions – Compact but Capable

The 20ft length makes this flat rack container ideal for smaller over-sized cargo shipments. For example, the platform length of approximately 5,850-6,058mm (19ft 3in-20ft) accommodates most industrial machinery, vehicles, and pipe lengths. Likewise, the platform width of approximately 2,200-2,438mm (7ft 3in-8ft) provides ample space for wide equipment. If you need a compact yet capable platform for over-sized cargo, this 20ft flat rack delivers the perfect balance.

What’s Included

First, every unit includes the 20ft Corten steel flat rack container. Second, collapsible end walls fold flat for flexible loading and storage. Third, open sides provide unrestricted side access for loading. Fourth, lashing rings (8-12 side rail + floor points) come welded in place. Finally, the CSC safety plate comes affixed and valid, and forklift pockets (4) allow easy repositioning.

For instance, you can add removable side rails for additional securement on tall cargo. Likewise, you can add a weatherproof tarpaulin cover for protection against rain and sun. Furthermore, a full repainting service is available in any RAL colour. Contact our team for custom configurations and volume pricing.

Pros and Cons

Pros:

• Collapsible end walls fold flat (unobstructed end loading, reduces storage space by up to 60%)

• Open sides (unrestricted access for forklift or crane loading from sides)

• Heavy-duty platform supports extreme point loads (up to approx. 28,000 kg payload)

• Lashing rings (8-12 points for securement with chains or straps)

• CSC plated (valid for intermodal shipping worldwide)

• 20ft platform length (compact, fits smaller sites)

• Forklift pockets (4) for repositioning

• Ideal for machinery, pipes, timber, and vehicles

Cons:

• Open sides mean no weather protection (cargo exposed to elements)

• Not stackable (cannot place other containers on top)

• Requires professional cargo securement expertise

• More expensive than standard containers

Technical Specifications

Final Verdict

In summary, this flat rack container with collapsible end walls delivers a versatile platform for over-sized cargo with loading access from all four sides. As a result, you can load lengthy pipes, wide machinery, or heavy equipment from any direction using a forklift or crane. Consequently, one heavy equipment exporter switched to flat rack containers with collapsible ends and eliminated costly disassembly of machinery to fit standard containers. Therefore, choose this collapsible end wall configuration if you need maximum loading flexibility for over-sized cargo and efficient empty storage. If you need fixed end walls for additional securement, consider our fixed-end flat rack. If you require weather protection, add a tarpaulin cover. Thus, request a free quote with your cargo dimensions and delivery postcode today. Return to our specialised container home page for flat racks, open tops, and other configurations.
