20 ft Open Side Bunded Container – Open Mesh Floor, Corten Steel, 24 Vents_

This 20 ft open side bunded container – open mesh floor, Corten steel, 24 vents combines full side access with a raised mesh floor that allows spills to drain directly into the bund below. This design makes “hose-out” cleaning quick and efficient. For example, you can store IBCs, drums, or chemical containers inside while easily accessing them from the full-length side opening. Therefore, this unit delivers compliant, easy-to-clean hazardous liquid storage with exceptional ventilation.

Why Choose an Open Side Bunded Container with Mesh Floor?

Standard bunded containers have solid floors that trap spills, requiring manual mopping and absorbent materials. In contrast, this open mesh floor design allows spills to pass through into the bund below. You can simply hose down the floor after a spill or cleaning . Consequently, you eliminate the need for absorbent materials and significantly reduce cleanup time. Moreover, the open sides provide forklift and pallet access from the full 20ft length . Thus, you gain both spill containment convenience and loading efficiency.

Key Features of This Open Side Bunded Container

The open mesh floor and full side access make this hazardous storage container stand out. For instance, the raised open mesh floor allows spills to drain through into the bund below. The floor also supports easy hose-out cleaning . Similarly, the open side access (full length) allows forklift and pallet truck loading from the side . Furthermore, 24 vents provide continuous cross-flow ventilation, reducing condensation and fume buildup. Finally, the lockable end doors provide additional security when needed.

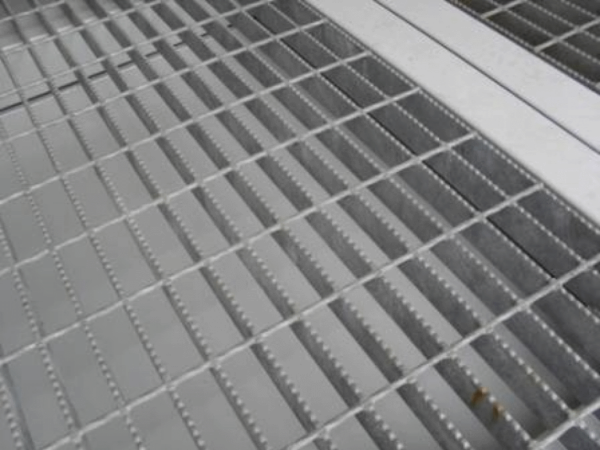

Open Mesh Floor – The “Hose-Out” Advantage

The open mesh floor design makes this container exceptionally easy to maintain. For example, the mesh panels allow spilled chemicals to pass through into the bund below rather than pooling on the surface . Likewise, the removable mesh sections allow easy access to the bund for inspection and cleaning . Furthermore, you can simply hose down the floor after a spill, eliminating absorbent waste. If you store chemicals that require frequent decanting, this design significantly reduces cleanup time.

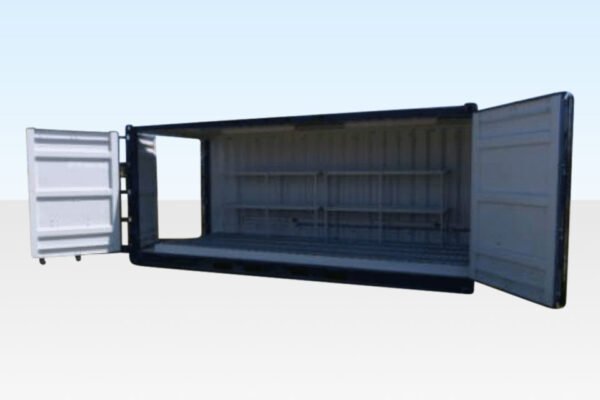

Full Side Access – Forklift Friendly Loading

The open side design provides exceptional access for loading and unloading this 20ft bunded container. For example, you can drive a forklift directly alongside the container and load IBCs or drums straight onto the floor . Likewise, the full 20ft side opening gives you access to every storage position without moving other items. Furthermore, the lockable end doors provide alternative access when needed. If you load hazardous materials frequently, this side access design saves significant time compared to end-loading only.

24 Vents – Maximum Airflow for Hazardous Storage

The 24 vents eliminate condensation and fume buildup concerns in this bunded container. For example, the triple-screened vents prevent insect ingress while allowing air to circulate freely throughout the container . Likewise, the high vent count eliminates condensation hotspots that typically occur in unventilated corners. Furthermore, passive ventilation requires no power or ongoing maintenance. If you store volatile chemicals or moisture-sensitive materials, this 24-vent configuration provides exceptional safety.

300mm Bund – Secondary Spill Containment

The 300mm raised bund provides critical secondary containment for hazardous materials. For example, the bund capacity of approximately 1,800 litres exceeds the 110% requirement for two IBCs (2,000L total) plus 10% . Likewise, the fully welded steel sub-floor construction eliminates weak points where leaks could escape. Furthermore, the raised design allows visual inspection of the bund area through the mesh floor . If you store diesel, chemicals, or oils, this bunded floor ensures you contain any spills safely.

Corten Steel Durability for Chemical Storage

Chemical storage demands exceptional corrosion resistance. First, Corten steel (grade S355J2W) forms a stable, self-protecting rust patina over time . Second, this patina prevents deeper corrosion, even in aggressive chemical environments . Third, the steel requires no painting or ongoing maintenance . Finally, a typical Corten steel container lasts 25+ years in outdoor conditions . Therefore, you can store hazardous chemicals without worrying about premature container failure.

20ft Dimensions – Compact Bunded Storage

The 20ft length makes this open side bunded container ideal for smaller hazardous storage applications. For example, the internal length accommodates 2 IBCs or up to 8 x 205L drums . Likewise, the open side access gives you easy loading from the full length. Furthermore, the compact 20ft footprint fits on smaller sites . If you need hazardous liquid storage with easy access in a compact space, this 20ft open side bunded container delivers.

What’s Included

First, every unit includes the 20ft Corten steel container with 300mm raised bund. Second, the open mesh floor (5mm galvanised steel) comes fully welded with removable panels for cleaning . Third, full side access provides forklift-friendly loading. Fourth, 24 ventilation vents are factory-fitted (triple-screened) . Finally, lockable end doors, CSC certification, and forklift pockets (4) complete the package.

For instance, you can add a heavy-duty removable ramp for drum trolley access. Likewise, you can add internal drum racks or shelving for organized storage. Furthermore, we offer custom bund depths for extra containment capacity . Contact our team for custom configurations.

Pros and Cons

Pros:

• Open mesh floor (spills drain into bund – hose-out cleaning, no absorbent materials needed)

• Full side access (forklift and pallet truck loading from full 20ft length)

• 24 ventilation vents (maximum airflow, reduces condensation and fume buildup)

• 300mm raised bund (approx. 1,800 litre capacity – holds 2 IBCs + 10%)

• Corten steel construction (weathering, corrosion-resistant)

• Removable mesh panels (easy bund access for cleaning and inspection)

• 20ft length holds 2 IBCs or 8 drums (compact footprint)

• Triple-screened vents prevent insect ingress

Cons:

• Open mesh floor not suitable for very small containers or loose items

• Open side design may compromise some weather protection

• Requires bund inspection and cleaning schedule

• Heavy when empty (approx. 3,600 kg)

Technical Specifications

Final Verdict

In summary, this open side bunded container with open mesh floor delivers compliant hazardous liquid storage with easy hose-out cleaning and side access. As a result, you can store IBCs or drums safely while enjoying forklift-friendly loading from the full length. Consequently, one chemical facility chose this open side mesh floor container for their decanting area and reduced cleanup time by over 70% . Therefore, choose this open side mesh floor configuration if you need easy spill cleanup and side access for frequent loading. If you need a solid floor for smaller containers, consider our Durbar floor bunded container. If you require larger capacity, consider our 40ft open side bunded container. Thus, request a free quote with your delivery postcode and floor configuration today. Return to our bunded storage home page for ramps, shelving, and container maintenance kits
